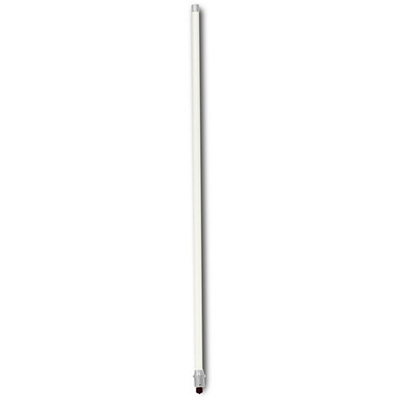

ANT-OM15 Planet Antennas

 To commit itself to the wireless long distance connectivity, PLANET WireFree provides a variety of antennas, cables and other accessories for 2.4GHz and 5GHz ISM band applications where more RF gain power is required to increase the convergence of the installations in the wireless state.

Features and Benefits

• 360 degrees Horizontal Spread & 10 degrees Vertical Spread
• Connector: N-female
• Operating environment: outdoor

Specifications

Frequency: 2400-2485MHz
Antenna Type: Omni-directional, General purpose
Gain (dBi): 15
SWR: <=1.3
Beamwidth Degree: Horizontal 360
                                    Vertical 10

Mounting Type: Mast mount
Operating Temperature: -40 ∼ 70 degrees C
