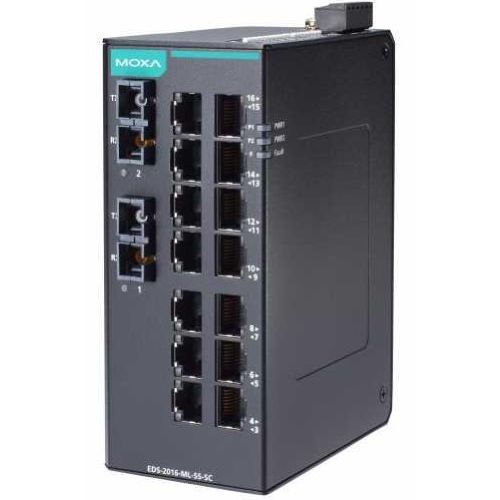

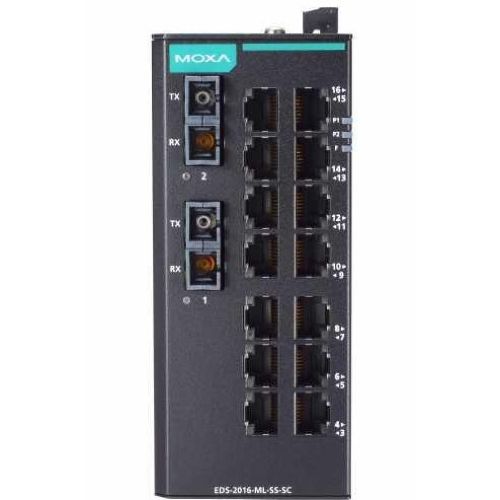

EDS-2016-ML-SS-SC-T
Unmanaged Ethernet switch with 14 10/100BaseT(X) ports, 2 100BaseFX single-mode ports with SC connectors, and -40 to 75°C operating temperature
Certificati





Features and Benefits
- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
- QoS supported to process critical data in heavy traffic
- Relay output warning for power failure and port break alarm
- IP30-rated metal housing
- Redundant dual 12/24/48 VDC power inputs
- -40 to 75°C operating temperature range (-T model)
Introduction
The EDS-2016-ML Series of industrial Ethernet switches have up to 16 10/100M copper ports and two optical fiber ports with SC/ST connector type options, which are ideal for applications that require flexible industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2016-ML Series also allows users to enable or disable the Quality of Service (QoS) function, broadcast storm protection, and the port break alarm function with DIP switches on the outer panel.
In addition to its compact size, the EDS-2016-ML Series features 12/24/48 VDC redundant power inputs, DIN-rail mounting, high-level EMI/EMC capability, and an operating temperature range of -10 to 60°C with -40 to 75°C wide temperature models available. The EDS-2016-ML Series has also passed a 100% burn-in test to ensure it will function reliably in the field.
Specifications
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 14
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports: 2
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service
DIP Switch Configuration
Ethernet Interface: Quality of Service (QoS), Broadcast storm protection, Port break alarm
Input/Output Interface
Alarm Contact Channels: Relay output with current carrying capacity of 1 A @ 24 VDC
Switch Properties
MAC Table Size: 8 K
Packet Buffer Size: 2 Mbits
Processing Type: Store and Forward
Power Parameters
Connection: 1 removable 6-contact terminal block(s)
Input Current: 0.204 A @ 24 VDC
Input Voltage: 12/24/48 VDC, Redundant dual inputs
Operating Voltage: 9.6 to 60 VDC
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
Physical Characteristics
Housing: Metal
IP Rating: IP30
Weight:
Non-fiber models: 486 g (1.07 lb)
Fiber models: 648 g (1.43 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL 61010-2-201, EN 62368-1(LVD)
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Railway: EN 50121-4
Vibration: IEC 60068-2-6
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
MTBF
Time: 2,070,826 hrs
Standards: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
