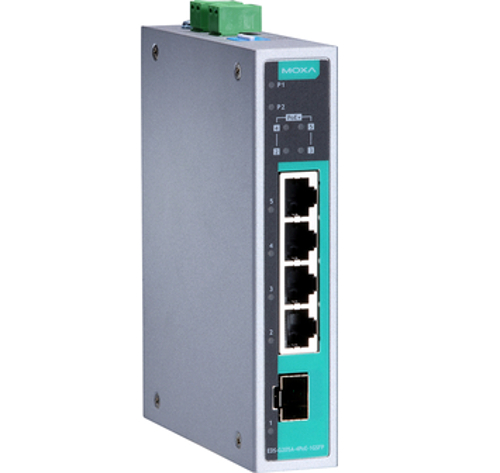

EDS-G205A-4PoE-1GSFP MOXA DIN Rail POE Unmanaged Switches

EDS-G205A-4PoE-1GSFP MOXA

EDS-G205A-4PoE-1GSFP

Unmanaged gigabit PoE switch with 4 PoE 10/100/1000BaseT(X) ports, 1 1000BaseX (SFP slot) port, 0 to 60°C

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 585,90
3+ pz.€ 568,32
5+ pz.€ 556,60

Prezzo di 1 pz. iva (22%) inclusa: € 714,80

Disponibilità: 10 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: MOXA

SKU: 92106

Model: EDS-G205A-4PoE-1GSFP

Line: 1G

Prodotti Correlati

MOXA

19 Rack mount kit for EDS-series

1+ pezzi:  € 151,20

MOXA

WDM-type (BiDi) SFP Interface module, Tx ...

1+ pezzi:  € 1.084,75

MOXA

WDM-type (BiDi) SFP Interface module, Tx ...

1+ pezzi:  € 1.135,81

MOXA

WDM-type (BiDi) SFP Interface module, Tx ...

1+ pezzi:  € 1.350,08

MOXA

WDM-type (BiDi) SFP Interface module, Tx ...

1+ pezzi:  € 1.409,51

MOXA

WDM-type (BiDi) SFP Interface module, Tx ...

1+ pezzi:  € 1.480,65

Features and Benefits

  • Full Gigabit Ethernet ports
  • IEEE 802.3af/at, PoE+ standards
  • Up to 30 watts output per PoE port
  • 24/48 VDC flexible redundant power inputs
  • Supports 9.6 KB jumbo frames
  • Intelligent power consumption detection and classification
  • Smart PoE over current and short circuit protection
  • -40 to 75°C operating temperature range (T models)

Introduction

Download Industrial PoE Application PortfolioThe EDS-G205A-4PoE switches are smart, 5-port, unmanaged full Gigabit Ethernet switches supporting Power-over-Ethernet on ports 2 to 5. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-G205A-4PoE switches enable centralization of the power supply, providing up to 30 watts of power per port and reducing the effort needed for installing power. The switches can be used to power IEEE 802.3af/at standard devices (PD), eliminating the need for additional wiring, and they support IEEE 802.3/802.3u/802.3x with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical  high-bandwidth solution for your industrial Ethernet network.

Technology

Standards:
     IEEE 802.3af/at for Power-over-Ethernet
     IEEE 802.3 for 10BaseT
     IEEE 802.3u for 100BaseT(X)
     IEEE 802.3ab for 1000BaseT
     IEEE 802.3z for 1000BaseX
     IEEE 802.3x for Flow Control
Processing Type: Store and Forward

Switch Properties

MAC Table Size: 8 K
Packet Buffer Size: 136 KB
Jumbo Frame Size: 9.6 KB

Interface

Fiber Port: 1000BaseSFP slot
RJ45 Ports: 10/100/1000BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
PoE Pinout: V+, V+, V-, V- for Pin 1,2,3,6 (Endspan, MDI Alternative A)
LED Indicators: P1, P2, 10/100/1000M, PoE

Power Requirements

Input Voltage: 24/48 VDC, redundant dual inputs
Input Current: Max 7.5 A @ 24 VDC (supports up to 4 ports at 30 watts per PoE port)
Overload Current Protection: Present
Connection: 2 removable 2-contact terminal blocks
Reverse Polarity Protection: Present

Physical Characteristics

Housing: Metal, IP30 protection
Dimensions: 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in)
Weight: 300 g
Installation: DIN-rail mounting, wall mounting (with optional kit)

Environmental Limits

Operating Temperature:
     Standard Models: 0 to 60°C (32 to 140°F)
     Wide Temp. Models: -40 to 75°C (-40 to 167°F)
     Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

Safety: UL 508
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
     EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
     EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 4,
     EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Rail Traffic: EN 50121-4
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6

Warranty

Warranty Period: 5 years
