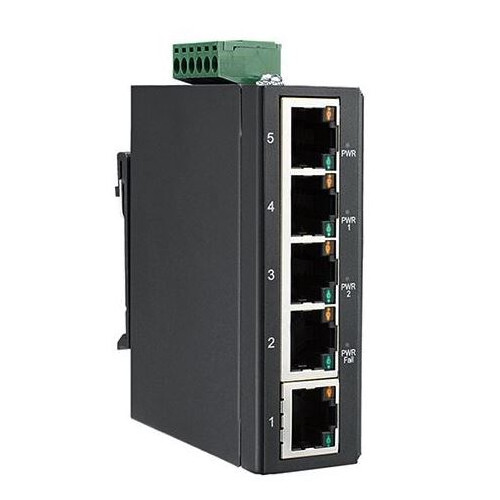

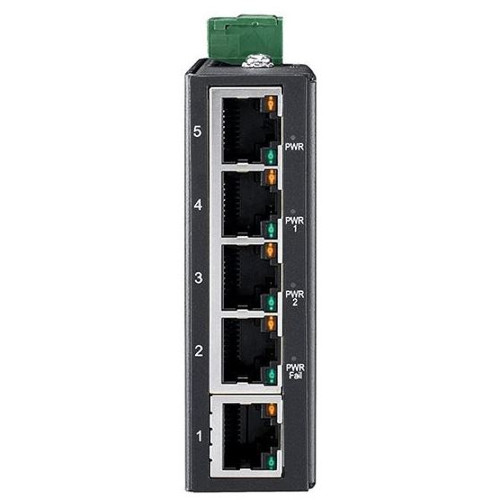

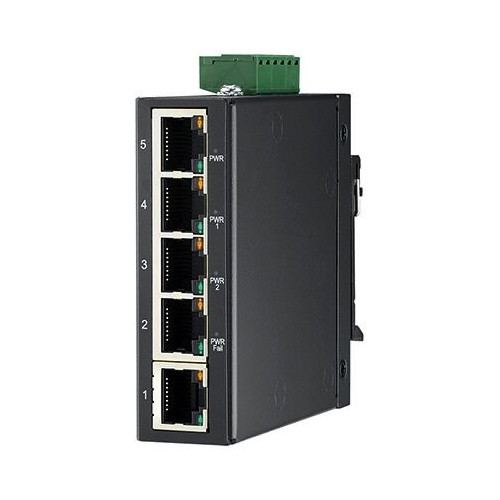

EKI-2525LI-AE ADVANTECH DIN Rail Unmanaged switches

 Features

• 5 x fast Ethernet ports with auto MDI/MDI-X
• Supports 10/100 Mbps auto negotiation
• Compact size with DIN rail and wall mount
• IP40-rated metal enclosure
• Redundant 12 ~ 48 VDC power terminal input plus one DC power jack and
• P-Fail relay
• Wide operating temperature range of -40 ~ 75°C

Introduction

The EKI-2525LI is a fast Ethernet solution. Power is delivered via a +12 ~ 48 VDC redundant input design with an additional DC power jack, and the unit is secured with power polarity
reverse protection. Each port has 2 LED’s to show the link status and transmission speed, and a relay output is included for an alarm events. In the event of a power failure, the built-in
LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, which makes troubleshooting quick and easy. The EKI-2525LI
comes with a compact metal enclosure, making it suitable for installation in narrow areas, and its IP40-rated enclosure ensures protection against dusty industrial environments.

Specifications

Communications

Standard IEEE: 802.3, 802.3u, 802.3x
LAN 10/100Base-T (X)
Transmission Distance: Up to 100 m
Transmission Speed: Up to 100 Mbps

Interface

Connectors:
 5 x RJ45
 6-pin removable screw terminal (power & relay)
 1 x DC power jack

LED Indicators:
 PWR, PWR1, PWR2, PWR fail
 10/100TX: link/activity, duplex

Power

Power Consumption: 3 Watts
Power Input: 12 ~ 48 VDC, redundant dual inputs
Fault Output: 1 Relay Output

Mechanism

Dimensions (W x H x D):   25 x 80 x 84 mm (0.984" x 3.150" x 3.307")
Enclosure: IP40, Metal shell with solid mounting kits
Mounting: DIN-rail, Wall

Protection

Reverse Polarity: Present
Overload current: Present

Environment

Operating Temperature: -40 ~ 75 °C (-40 ~ 167 °F)
Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity: 10 ~ 95% (non-condensing)
Storage Humidity: 10 ~ 95% (non-condensing)
MTBF: 6,873,904 hours

Certification

EMI: CE, FCC Class A

EMS:

EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
