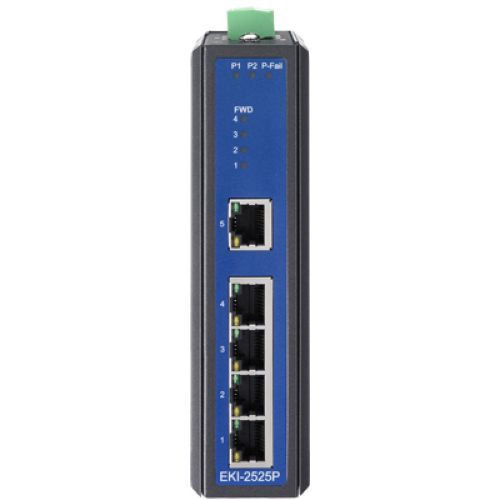

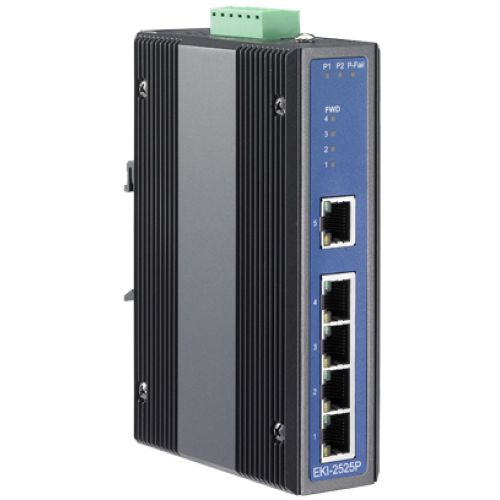

EKI-2525P-BE ADVANTECH DIN Rail POE Unmanaged Switches

 Features

• Provides 5/6 Fast Ethernet ports with 4 PoE ports with injector function
• Supports 10/100 Mbps Auto Negotiation
• Provides broadcast storm protection
• Supports Ethernet ESD protection
• Provides Slim size, DIN-rail/Wall mount with IP30 metal mechanism
• Supports Redundant 48 VDC power input and P-Fail relay
• Supports operating temperatures from -10 to 60°C (EKI-2525P)
• Supports wide operating temperature -40 ~ 75°C (EKI-2526PI)

Introduction

The EKI-2525P is a 5-port unmanaged PoE (Power-over-Ethernet) Industrial Ethernet switch and EKI-2526PI is a 6-port unmanaged PoE Industrial Ethernet switch, they support
4 PoE ports which are classified as power source equipments (PSE). The PoE devoces makes centralized power supply come true and provides up to 15.4 watts of power per port.
Advantech EKI PoE devices can be used to power IEEE 802.3af compliant powered devices (PD) by Ethernet cable and eliminates the need for additional power wiring. Advantech EKI
PoE devices come equipped with all the standard features of the EKI family. Furthermore, it offers a 48 VDC redundant power input design (EKI-2525P/EKI-2526PI), and is secured
with a double protection mechanism; Power Polarity Reverse Protect and an Overload Current Resettable Fuse. Advantech EKI PoE devices come with compact metal housing that
rates IP30 to help against from dusty industrial environments.

Specifications

Communications
Standard: IEEE 802.3, 802.3u, 802.3x, 802.3af
LAN 10/100Base-T (X)
Transmission Distance: Ethernet: Up to 100 m
Transmission Speed: Up to 100 Mbps

Interface

Connectors: PoE Ports: 4 (Ports 1 ~ 4)
Ethernet x1 (EKI-2525P)
Ethernet x2 (EKI-2526PI)
6-pin removable screw terminal (power & relay)
LED Indicators: P1, P2, P-Fail
10/100TX: Link/Activity, Duplex/Collision

Power

Power Consumption: EKI-2525P: 65 W (Full load PoE)
EKI-2526PI: 62.6 W (Full load PoE)
Power Input: 48 VDC (EKI-2525P/EKI-2526PI), redundant dual inputs
Power Output: 15.4 W at 48 V (per PoE port)
Fault Output: 1 Relay Output

Mechanism

Dimensions: (W x H x D) 37 x 140 x 95 mm (1.46" x 5.51" x 3.74")
(EKI-2525P)
48.6 x 140 x 95 mm (1.91" x 5.51" x 3.74")
(EKI-2526PI)
Enclosure: IP30, Metal shell with solid mounting kits
Mounting: DIN-rail, Wall

Protection

Reverse Polarity: Present
Overload current: Present

Environment

Operating Temperature: -10 ~ 60°C (14 ~ 140°F) (EKI-2525P)
-40 ~ 75°C (-40 ~ 167°F) (EKI-2526PI)
Storage Temperature. -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity: 5 ~ 95% (non-condensing)
Storage Humidity: 0 ~ 95% (non-condensing)
MTBF: 440,132 hours

Certification

Safety: UL 60950-1, CAN/CSA-C22.2 No.60950
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
