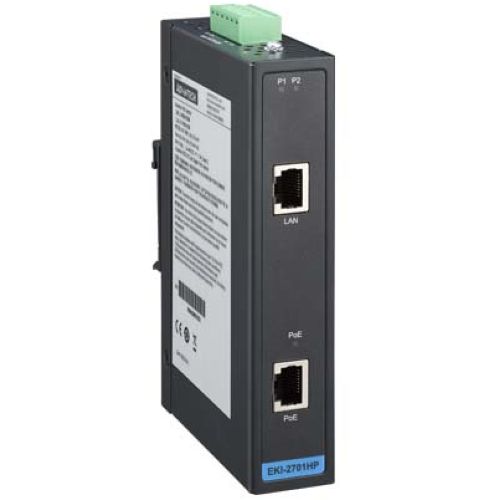

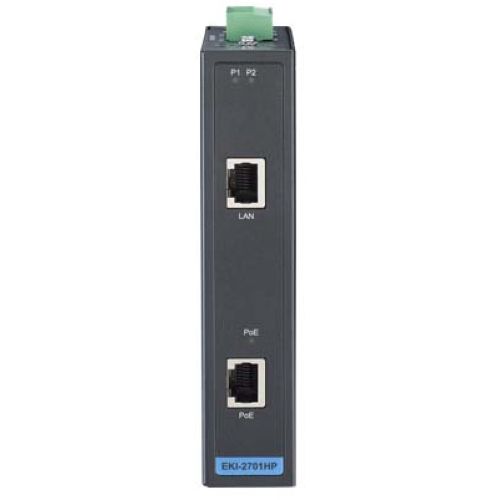

EKI-2701HP-AE ADVANTECH POE Injectors Splitter Extender

 Features

• Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN
• IEEE 802.3af/at compliant, supports a full 30 watt output
• Power input (24 ~ 48 VDC), inject 30 W for each port
• Provides slim size and DIN-rail/Wall mount with IP30 metal mechanism
• Supports operating temperatures from -40 to 75°C

Introduction

With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard CAT5 cable. EKI-2701HPI is compliant
IEEE 802.3af/at and inject 30W for PD device. This product can operate in a wide range of Temp. between -40 to 75°C and support wide power input range between 24 to 48 VDC .

Specifications

Communications

Standard: IEEE 802.3, 802.3u, 802.3x, 802.3af/at, 802.3ab
LAN: 10/100/1000Base-T (X)
Transmission Distance: Up to 100 m
Transmission Speed up: to 1000 Mbps

Interface

Connectors:
PoE OUT: RJ45
DATA IN: RJ45
6-pin removable screw terminal

LED Indicators: PWR1, PWR2, PoE status, Link/Activity

Power

Power Consumption: Max. 33.36 W @ 24 VDC (Full load PoE)
Power Input: 24 ~ 48 VDC, redundant dual power inputs
Power Output: 30 W @ 55 VDC

Mechanism

Dimensions: (W x H x D) 37 x 140 x 95 mm (1.46" x 5.51" x 3.74")
Enclosure: IP30, Metal shell with solid mounting kits
Mounting: DIN-rail, Wall

Protection

Reverse: Present
Overload Current: Present

Environment

Operating Temperature:  -10 ~ 60°C (-14 ~ 140°F)
Storage Temperature: -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity: 5 ~ 95% (non-condensing)
Storage Humidity: 0 ~ 95% (non-condensing)
MTBF: 1,419,817 hours

Certification

Safety:UL508
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8

Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
