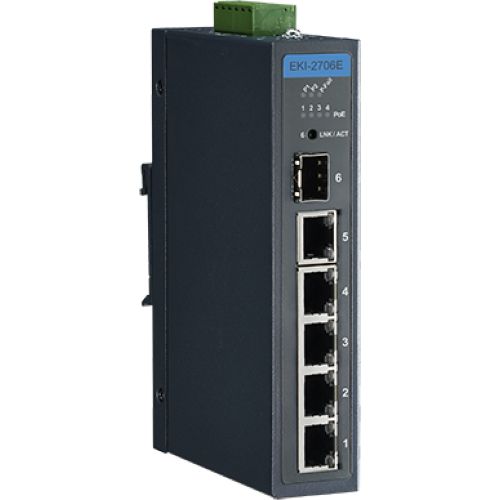

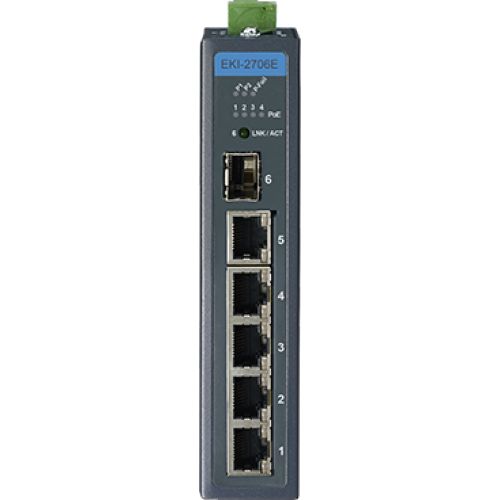

EKI-2706E-1GFPI-AE ADVANTECH DIN Rail POE Unmanaged Switches

EKI-2706E-1GFPI-AE ADVANTECH

EKI-2706E-1GFPI-AE

5-port (RJ-45) + 1-Port SFP Industrial Unmanaged Ethernet POE Switch, -40 ~ 75 °C Operating Temperature

Quantità':

Prezzo per pezzo

€ 274,56

(IVA esclusa)

€ 334,96 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 334,96

Disponibilità: 10 gg lav

Brand: ADVANTECH

SKU: 117259

Model: EKI-2706E-1GFPI-AE

Line: 1G

Bisogno di aiuto?


Features

  • Supports 10/100/1000 Mbps Auto Negotiation (EKI-2706G)
  • Supports jumbo frame transmission up to 9 kbytes
  • DIN-rail with IP30 metal mechanism
  • Redundant 48 VDC power input
  • Provides broadcast storm protection
  • 4 x IEEE 802.3 af/at PoE /PoE+ ports + 1 x Gigabit Copper + 1 Gigabit SFP ports

Introduction

The EKI-2706 series supports 48VDC redundant power input and is secured with a double protection mechanism: Power Polarity Reverse Protection and an Overload Current Fuse. The
EKI-2706 series supports up to 4-port IEEE 802.3 af/at PoE /PoE+ ports. Each port of EKI-2706 has two LED’s to show the link status, transmission speed, and collision status. It also
provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify, administrators. Engineers can simply verify the hardware
status by checking the LED to make troubleshooting quick and easy. EKI-2706 comes with a compact metal housing rated at IP30 to protect against dusty industrial environments.

Specifications

Communications

Standard: IEEE 802.3, 802.3u, 802.3x, 802.1ab, 802.1z

LAN:
4 x 10/100Mbps(RJ-45)+1 x 10/100/1000Mbps(RJ-45)
+1 x 100/1000Mbps(SFP)

Transmission Distance:
Ethernet: Up to 100 m (4-wire Cat.5e, Cat.6 RJ45 cable)
SFP: Up to 110 km (depends on SFP)

Transmission Speed:
Ethernet: 10/100 Mbps Auto-Negotiation
Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation
Gigabit Fiber: Up to 1000 Mbps

Interface

Connectors: 5 x RJ-45 + 1 x SFP
6-pin removable screw terminal (power & relay)
LED Indicators: P1, P2, P-Fail
Link / Speed / Activity

Power

Power Consumption: Max. 2 W
Power Input: 48 VDC
Fault Output: 1 Relay Output, 1 A @ 24 VDC
Power Budget: 90W

Mechanism

Dimensions (W x H x D): 30 x 140 x 95 mm (1.18" x 5.51" x 3.74")
Enclosure: IP30, metal shell with solid mounting kits
Mounting: DIN-rail, Wall

Protection

Power Reverse: Present
Overload current: Present

Environment

Operating Temperature: -40 ~ 75 °C (-40 ~ 167 °F)
Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity: 10 ~ 95% (non-condensing)
Storage Humidity: 10 ~ 95% (non-condensing)
MTBF: 1,697,086 hours

Certification

Safety: UL 60950
EMI: CE, FCC Class A
EMS:
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8

Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
