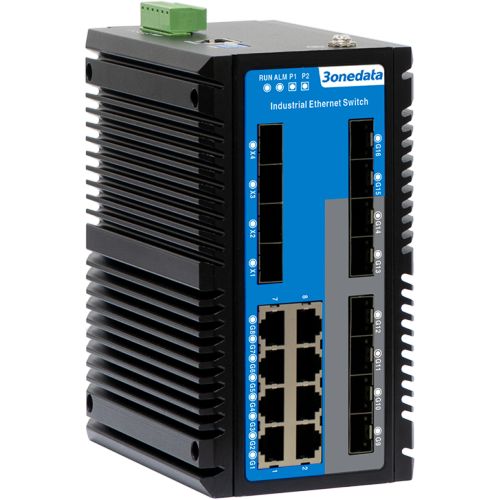

ICS6420-8GT8GS4XS 3onedata Gigabit Managed Switches

ICS6420 series are 20-port Gigabit/10 Gigabit layer 3 industrial Ethernet switches. They provide 10Gigabit SFP+ slots, Gigabit SFP slots and Gigabit copper ports. They adopt DIN-Rail/wall mounting. Abundant numbers of interfaces, bandwidth of Gigabit/10Gigabit combination and ability to transmit large amounts of video, voice and data with high performance and high speed meet the application requirements of large-scale industrial network. Network management system supports a variety of network protocols and industry standards, such as ARP, VRRP, RIP, OSPF, BGP, NAT, ERPS, STP/ RSTP/MSTP, 802.1Q VLAN, QoS function, IGMP static multicast function, LLDP, port trunking, port mirror, etc. It has perfect management functions, supporting port configuration, port statistics, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc. CLI, WEB, Telnet, SSH, SNMP and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

The product supports dual DC power redundancy, and the power input is two independent power supply circuits to ensure the normal operation of the equipment in case of power failure in one circuit. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.



Support 4 optional 10 gigabit SFP slots, 8/12 gigabit copper ports and 4/8 gigabit SFP slots

Adopt SW-Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function, automatic recovery time of network failure < 20ms

10 Gigabit bandwidth can provide high performance and speed to transfer large amounts of video, voice, and data

Support dual power supply, input voltage: 12~48VDC

Support -40～70℃ wide operating temperature range



IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000Base-X

IEEE802.3ae for 10GBase-X SFP+

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE802.1p for CoS

IEEE 802.1X for port access control

IEEE 802.1AB for LLDP

SNMP v1/v2c/v3 Centralized Management Devices, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Log Management, Port Statistics, ARP

User permission rating, ACL, 802.1X authentication, port alarm, power alarm, storm suppression, Telnet configuration, SSH configuration, link flapping protection, NAT, DHCP snooping, loop detection, aggregation protection

802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation

Static Multicast, IGMP-Snooping, PIM-DM, PIM-SM

Ring, STP/RSTP/MSTP, ERPS

Ping, Traceroute, Port Loopback, SFP Digital Diagnosis

VRRP, RIP, OSPF, BGP

NTP Client, RTC

     Gigabit copper port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption

Gigabit SFP: 100/1000Base-X self-adaptive SFP slot

10Gigabit SFP+: 1000/10GBase-X self-adaptive SFP+ slot

Console port: CLI command line management port(RS-232), RJ45

   Alarm port: 6-PIN 5.08mm pitch terminal blocks(relay occupies 2 pins), support 1 relay alarm output, current loading capacity is 1A/30VDC or 0.3A/125VAC

Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator

Switch Property

MAC address: 16K

Packet buffer size: 12Mbit

Backplane bandwidth: 128G

Input voltage: 12~48VDC

Redundant power supply: support dual power supply redundancy

Overcurrent protection: 3A

Connection protection: anti-reverse connection

    Access terminal: 6-PIN 5.08mm pitch terminal blocks (dual power supply occupies 4 pins)

No-load: 9.6W@12VDC

Full-load: 17.76W@12VDC

Working Environment

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%～95% (no condensation)

Housing: IP40 protection, metal

Installation: DIN-Rail/wall mounting

Weight: 3176g

Dimension (W x H x D): 86.1mm×160mm×130mm

IEC 61000-4-2 (ESD, electrostatic discharge), Level 3

Air discharge:± 8kV

Contact discharge: ±6kV



IEC 61000-4-4 (EFT, electrical fast transient), Level 3

Power supply: ±2kV

Signal: ±1kV



IEC 61000-4-5 (Surge), Level 3

Power supply: differential mode±1kV, common mode±2kV

Signal: differential mode±1kV, common mode±2kV



Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

CE, FCC, RoHS

5 years
