IES6316-8GT8GS-2P48, DIN Rail Industrial managed switch Layer 2, 8 port 10/100/1000Base-T(X) (RJ45) + 8 port 1000M SFP(SFP slot), dual power supply, 12~48VDC

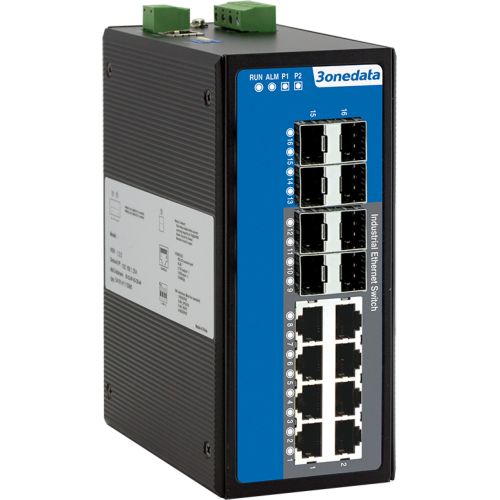

IES6316-8GT8GS-2P48
DIN Rail Industrial managed switch Layer 2, 8 port 10/100/1000Base-T(X) (RJ45) + 8 port 1000M SFP(SFP slot), dual power supply, 12~48VDC
SPEDIZIONE GRATUITA
Overview
The IES6316-8GT8GS-2P48 is a 16-port Gigabit layer 2 managed industrial Ethernet switch. This product provides Gigabit SFP slots and Gigabit copper ports. It adopts DIN-Rail mounting, which can meet the application requirements of large-scale industrial networks.
Network management system supports a variety of network protocols and industry standards, such as ARP, ERPS, STP/ RSTP/MSTP, 802.1Q VLAN, QoS function, IGMP static multicast function, LLDP, port trunking, port mirroring, etc. It has perfect management functions, supporting port configuration, port statistics, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc. CLI, WEB, Telnet, SSH, SNMP and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
The product supports dual DC power redundancy, and the power input is two independent power supply circuits to ensure the normal operation of the equipment in case of power failure in one circuit. When power supply or port has link failure, ALM alarm indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
Features
- Support 8 Gigabit copper ports and 8 Gigabit SFP slots
- Adopt SW-Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
- Support ERPS and loop detection, which can eliminate loop effectively and prevent broadcast storm caused by data loop
- Support dual DC power redundancy, input voltage: 12~48VDC
- Support -40~75℃ wide operating temperature range
Specifications
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE802.1p for CoS
IEEE 802.1X for port access control
IEEE 802.1AB for LLDP
Management
SNMP v1/v2c/v3 Centralized Management Devices, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Log Management, Port Statistics, ARP
Security
User permission rating, ACL, 802.1X authentication, port alarm, power alarm, storm suppression, Telnet configuration, SSH configuration, link flapping protection, loop detection, aggregation protection
Switch Function
802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation
Unicast / Multicast
Static Multicast, IGMP-Snooping
Redundancy Technology
Ring, STP/RSTP/MSTP, ERPS
Troubleshooting
Ping, Traceroute, Port Loopback, SFP Digital Diagnosis
Time Management
NTP Client, RTC
Interface
Gigabit copper port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption
Gigabit SFP: 1000Base-X SFP slot
Console port: CLI command line management port(RS-232), RJ45
Alarm port: 2-pin 7.62mm pitch terminal blocks, supports 1 relay alarm output, and the current load capacity is 1A@24VDC or 0.5A@120VAC
Indicator
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
Switch Property
Transmission mode: store and forward
MAC address: 16K
Packet buffer size: 12Mbit
Backplane bandwidth: 56G
Switch time delay: <5μs
Power Supply
Input voltage: 12~48VDC
Redundant power supply: support dual power supply redundancy
Connection protection: non-polarity
Access terminal: 4-PIN 7.62mm pitch terminal blocks
Power Consumption
No-load: 10.99W@24VDC
Full-load: 20.69W@24VDC
Working Environment
Operating temperature: -40~75℃
Storage temperature:-40~75℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, high-strength corrugated metal
Installation: DIN-Rail mounting
Weight: 1.1kg
Dimension (W x H x D): 70mm×160mm×130mm
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 4
Air discharge:± 15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 4
Power supply: ±4kV
Signal: ±2kV
IEC 61000-4-5 (Surge), Level 4
Power supply: differential mode±2kV, common mode±4kV
Signal: differential mode±2kV, common mode±4kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Authentication
CE, FCC, RoHS
Warranty
5 years
