IGS-6325-8T8S4X Planet DIN Rail managed switches

IGS-6325-8T8S4X Planet

IGS-6325-8T8S4X

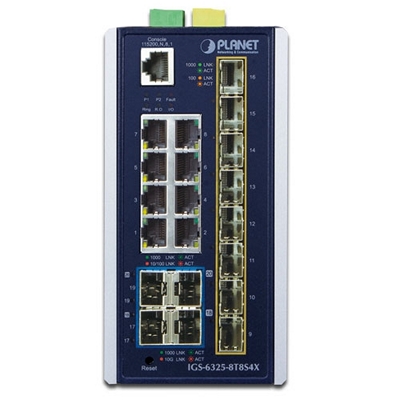

Industrial L3 8-Port 10/100/1000T + 8-Port 100/1000X SFP + 4-Port 10G SFP+ Managed Ethernet Switch

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 741,95

Prezzo di 1 pz. iva (22%) inclusa: € 905,18

Disponibilità: 10 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: PLANET

SKU: 115348

Model: IGS-6325-8T8S4X

Line: 1G

Prodotti Correlati

Planet

SFP-Port 1000BASE-T Module

1+ pezzi:  € 48,42

Planet

SFP-Port 1000BASE-BX (WDM, TX:1550nm) ...

1+ pezzi:  € 24,99

Planet

SFP-Port 1000BASE-SX mini-GBIC module ...

1+ pezzi:  € 19,53

 10Gbps Fiber Ports and Multiple Dual Speed Ports Deliver High-speed Networking

PLANET IGS-6325 Industrial Layer 3 Managed Non-PoE Switch series features 8 10/100/1000BASE-T Copper ports, 8 extra 100/1000/2500BASE-X SFP fiber ports, 4 10GBASE-SR/LR SFP+ ports and Layer 3 IP routing in a rugged IP30 metal case for stable operation in heavy industrial demanding environments.
With 10Gbps uplink, the IGS-6325-8T8S4X can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high capacity servers. The IGS-6325-8T8S4X is capable of providing non-blocking switch fabric and wire-speed throughput as high as 136Gbps in the temperature range from -40 to 75 degrees C. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands.

Specifications

Hardware Specifications

Copper Ports: 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Ports: 8 100/1000/2500BASE-X SFP slot interfaces (Port-9 to Port-16)
Compatible with 100BASE-FX and 2500BASE-X SFP transceiver
SFP+ Ports: 4 10GbBASE-SR/LR SFP+ slot interfaces
Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver
Console: 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture: Store-and-Forward
Switch Fabric: 136Gbps/non-blocking
Throughput: 83.33Mpps@64Bytes
Address Table: 16K entries, automatic source address learning and aging
Shared Data Buffer: 32Mbits
Jumbo Frame: 10K bytes
SDRAM: 512Mbytes
Flash Memory: 64Mbytes
Flow Control: IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Reset Button: < 5 sec: System reboot
> 5 sec: Factory default

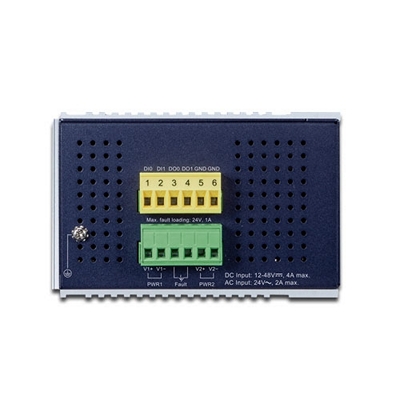

Connector: Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm: One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DO): 2 digital input:
Level 0: -24~2.1V (±0.1V)
Level 1: 2.1~24V (±0.1V)
Input load to 24V DC, 10mA max.
Digital Output (DO): 2 digital output:
Open collector to 24VDC, 100mA
Enclosure: IP30 aluminum case
Installation: DIN-rail or wall mounting
Dimensions (W x D x H): 76.8 x 107.3 x 152 mm
Weight: 1,250g
Power Requirements: DC 12~48V, 4A max.
AC 24V, 2A max.
Power Consumption: DC input:
Max. 12 watts/41BTU (system on)
Max. 38.4 watts/132 BTU (Full loading)

AC 24V input:
Max. 13 watts/45BTU (system on)
Max. 38 watts/130 BTU (Full loading)
ESD Protection: 6KV DC
Surge Protection: 4KV DC
LED Indicators: System:
 Power 1 (Green), Power 2 (Green)
 Fault Alarm (Red)
 Ring (Green), Ring Owner (Green)
 DIDO (Red)
Per 10/100/1000T RJ45 Port:
 1000Mbps LNK/ACT (Green)
 10/100Mbps LNK/ACT (Amber)
Per SFP Port:
 1000Mbps LNK/ACT (Green)
 100Mbps LNK/ACT (Amber)
Per SFP+ Port:
 10Gbps LNK/ACT (Amber)
 1Gbps LNK/ACT (Green)

Layer 2 Functions

Port Configuration: Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port Status: Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port Mirroring: TX/RX/Both
Many-to-1 monitor
VLAN: 802.1Q tagged VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
GVRP
Up to 4000 VLAN groups, out of 4095 VLAN IDs
Link Aggregation: IEEE 802.3ad LACP/static trunk
14 trunk groups with 16 port per trunk group
Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IGMP Snooping: IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD Snooping: IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Access Control List: IP-based ACL/MAC-based ACL
ACL based on:
 - MAC Address
 - IP Address
 - Ethertype
 - Protocol Type
 - VLAN ID
 - DSCP
 - 802.1p Priority
Up to 256 entries
Bandwidth Control: Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
QoS: Traffic classification based, strict priority and WRR
8-level priority for switching:
 - Port number
 - 802.1p priority
 - 802.1Q VLAN tag
 - DSCP/ToS field in IP packet
Synchronization: IEEE 1588v2 PTP(Precision Time Protocol)
 - Peer-to-peer transparent clock
 - End-to-end transparent clock

Layer 3 Functions

IP Interfaces: Max. 128 VLAN interfaces
Routing Table: Max. 128 routing entries
Routing Protocols: IPv4 hardware static routing
IPv6 hardware static routing
OSPFv2 dynamic routing

Management

Basic Management Interfaces: Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces: SSHv1/v2, TLS, SSL, SNMPv3
System Management: Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
SNMP MIBs: RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP

Standards Conformance

Regulatory Compliance: FCC Part 15 Class A
CE:
EN55032
EN55035
EN 62368-1/IEC 62368-1: 2014
Stability Testing: IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring

Environment

Operating: -40 ~ 75 degrees C
Storage: -40 ~ 85 degrees C
Humidity: 5 ~ 95% (non-condensing)
