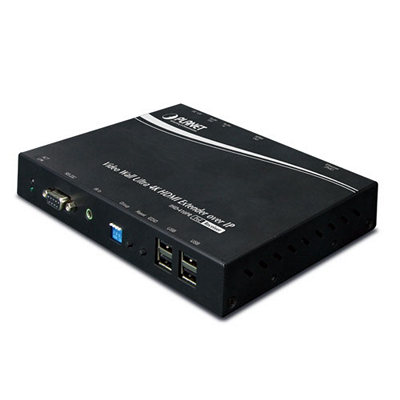

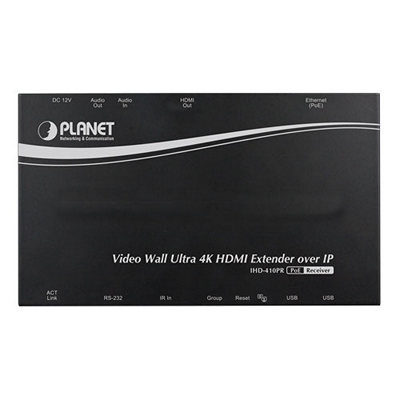

IHD-410PR
Video Wall Ultra 4K HDMI/USB Extender Receiver over IP with PoE
Bisogno di aiuto?
Prodotti Correlati
Ultra High-quality 4K HDMI Video Wall
PLANET IHD-410 HDMI/Video Wall over IP with PoE delivers a great 4K video distribution solution such as bringing an efficient and effective advertising deployment. The IHD-410 series is the combination of the transmitter, IHD-410PT, and the receiver, IHD-410PR. They can be used as an audio, video and IR extender over IP and applied to point to point, point to multi-point, multi-point to multi-point and eye-catching video walls of up to 16 by 8 displays.
Specifications

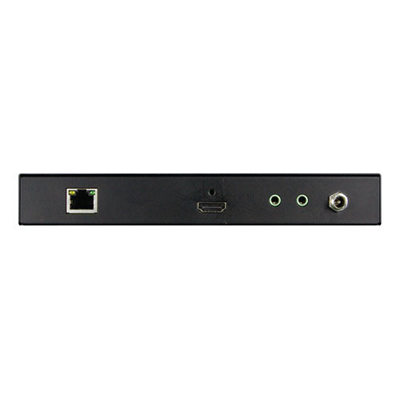

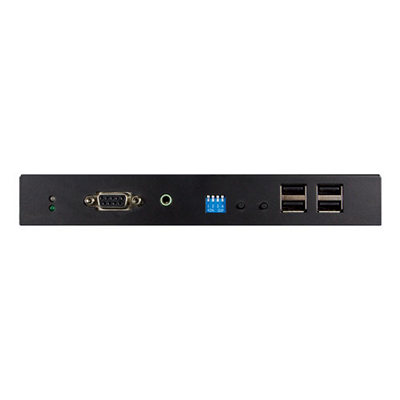

Hardware Specifications
Network Interface: RJ45 port (10/100/1000BASE-T Ethernet) x 1
Serial Interface: DB-9 female connector for RS232 x 1RS232
LED: ACT LED x 1
Link LED x 1
Buttons: Reset button x 1
G/V mode button x 1
Video Out Interface: HDMI A Type female connector x 1
External Audio In Interface: 3.5mm jack x 1
External Audio Out Interface: 3.5mm jack x 1
IR: 3.5mm jack for IR receiver cable
Channel Switching: DIP (16 channels)
USB: USB 2.0 type A x 4 (For mouse/keyboard)
Power Supply: IEEE 802.3af/at PoE+
12V DC, 2A
Power Consumption: 3W (Min.)
14W (Max.)
Dimensions (W x D x H): 194 x 114 x 28 mm
Weight: 620 g
Video and Audio
Maximum Video Wall: 8 x 16 (row x column)
HDMI Video Out Resolution: 4K (3840x2160) @ 30/24 Hz
1080p @ 30/25 Hz
1080i @ 60/50 Hz
720p @ 60/50 Hz
480p @ 60/50 Hz
480i @ 60/50 Hz
HDMI Video Out Rotation: 0 degrees/180 degrees/270 degrees
Compression: Visual lossless compression
Audio: HDMI: 2-ch uncompressed audio
General
Management Interfaces: Web management
System Expandability (max.): 16 groups
Resolution Identification: EDID (Extended Display Identification Data)
Security: HDCP compliant
Media Stream Bandwidth: Approximately 275Mbps@ 4K 30Hz
Maximum Distance (between unit and PoE switch): 100 meters (330 feet) over CAT5e/6 cable
Standards Conformance
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3af/at PoE+
HDMI Interface Compliance: HDMI 1.4a
Protocol: TCP, UDP, RTSP, RTP, DHCP, IGMP Snooping, Multicast, IPv4
Cabling: Cat5e/6 UTP cable
Environment Specifications
Operating: Temperature: 0~55 degrees C
Relative Humidity: 5~90% (non-condensing)
Storage: Temperature: -10~60 degrees C
Relative Humidity: 5~90% (non-condensing)
Emission: FCC, CE
