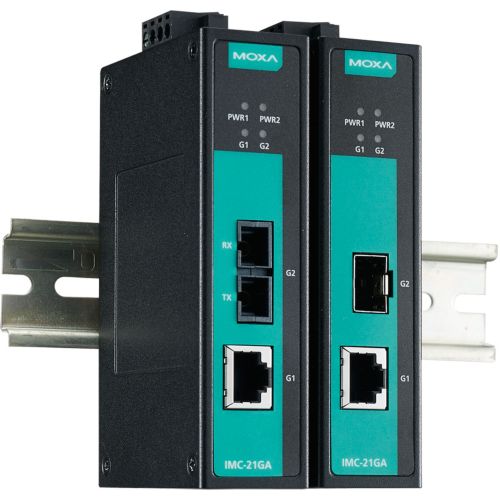

IMC-21GA-SX-SC-T MOXA ethernet to Fiber Converters

Features and Benefits

• Supports 1000Base-SX/LX with SC connector, or SFP slot
• Link Fault Pass-through (LFP)
• 10K jumbo frame
• Redundant power input
• -40 to 75°C operating temperature range (T models)
• Supports Energy Efficient Ethernet (IEEE 802.3az)

Introduction

The IMC-21GA industrial Gigabit media converters are designed to provide reliable and stable 10/100/1000BaseT(X) to 100/1000Base-SX/LX or selected 100/1000Base SFP module media conversion. The IMC-21GA supports IEEE 802.3az (Energy Efficient Ethernet) and 10K jumbo frames, allowing them to save power and enhance transmission performance. The converters come with a relay output warning alarm to help prevent damage and loss, and all IMC 21GA models are subjected to a 100% burn-in test, and are available in models that support a standard operating temperature range of 0 to 60°C, and an extended operating temperature range of -40 to 75°C.

Technology

Standards:
     IEEE 802.3 for 10BaseT
     IEEE 802.3u for 100BaseT(X) and 100BaseFX
     IEEE 802.3ab for 1000BaseT(X)
     IEEE 802.3z for 1000BaseX
     IEEE 802.3az (Energy Efficient Ethernet)

Interface

RJ45 Ports: 10/100/1000BaseT(X), auto MDI/MDI-X
Fiber Ports: 100/1000Base-SX/LX or 100/1000BaseSFP slot
LED Indicators: PWR1, PWR2, G1 (copper port 10M/100M/1000M), G2 (fiber port 100M/1000M)
DIP Switches: Fiber speed 100M/1000M, Link Fault Pass-through, Energy Efficient Ethernet

Optical Fiber

Multi-mode Transmission Distance (IMC-21GA-SX-SC): 100/1000BaseSX: 0 to 500 m, 850 nm (50/125 μm, 400 MHz*km)
Single-mode Transmission Distance (IMC-21GA-LX-SC): 100/1000BaseLX: 0 to 10 km, 1310 nm (9/125 μm, 3.5 PS/(nm*km))

Physical Characteristics

Housing: Metal, IP30 protection
Dimensions: 30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in)
Weight: 170 g
Installation: DIN rail mounting, wall mounting (with optional kit)

Environmental Limits

Operating Temperature:
     Standard Models: -10 to 60°C (14 to 140°F)
     Wide Temp. Models: -40 to 75°C (-40 to 167°F)
     Storage Temperature: -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements

Input Voltage: 12 to 48 VDC (10 to 60 VDC), redundant inputs
Input Current: 284.7 mA @ 12 VDC; 156.0 mA @ 24 VDC
Connection: Removable terminal block
Overload Current Protection: 1.5 A
Reverse Polarity Protection: Present

Standards and Certifications

Safety: UL 60950-1
EMC: CE, FCC
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
     EN 61000-4-2 (ESD) Level 3
     EN 61000-4-3 (RS) Level 3
     EN 61000-4-4 (EFT) Level 3
     EN 61000-4-5 (Surge) Level 3
     EN 61000-4-6 (CS) Level 3
     EN 61000-4-8
     EN 61000-4-11
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Green Product: RoHS, CRoHS, WEEE

MTBF (mean time between failures)

Time:
     IMC-21GA: 2,762,058 hrs
     IMC-21GA-LX-SC: 2,573,203 hrs
     IMC-21GA-SX-SC: 2,573,203 hrs
Database: Telcordia (Bellcore), GB

Warranty

Warranty Period: 5 years
