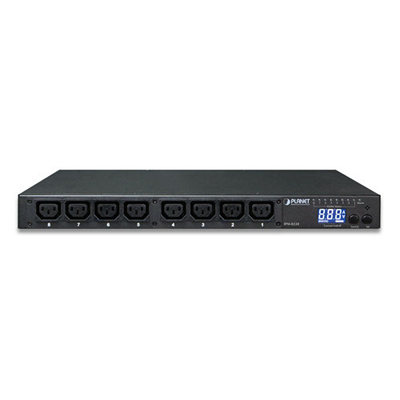

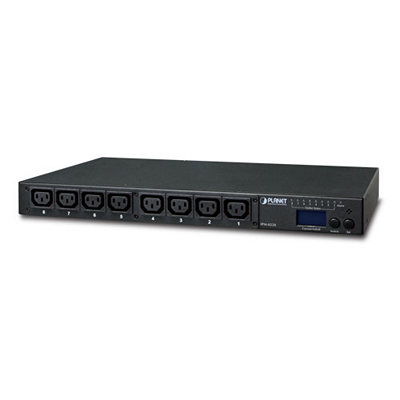

IPM-8220-US Planet Power Manager

IPM-8220-US Planet


IP-based 8-port Switched Power Manager (AC 100-240V, 16A max.) - US Type

Prezzo per pezzo

€ 570,13

(IVA esclusa)

€ 695,56 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 695,56


SKU: 115772

Model: IPM-8220-US

Bisogno di aiuto?


Meeting All Your Power Needs via IP-based Power Outlets

PLANET IPM-8220 is a 8-port IP Power Management (IPM) device that provides the useful function of managing power for any combination to connect with itself. With the innovative IP-based technology, PLANET has made the traditional power management equipment into true networking devices.

Features and Benefits


  • 1U rack-mount size design
  • IEC outlet models
  • 8 power outlets that support real-time current image monitoring
  • 8 LEDs show power status for each power outlet
  • LCD panel displays current, max. alarm, voltage and network information
  • Switch/Set button to lock-up protection to avoid modification
  • Buzzer will ring when total power consumption value exceeds set value
  • Circuit breaker can avoid damage that is caused by overload
  • Versatile sensors supported through environmental sensor box (ESB) inputs

Power Distribution

  • Maximum Amps/Inlet: IEC 16A for 1 inlet
  • Maximum Amps for 8 Outlets: IEC 16A for 8 outlets
  • Full Frequency Range: 50~60Hz
  • Supports multiple power control methods – Wake on LAN, System After AC Back, Kill the Power

Remote Access

  • Remote power control via TCP/IP and a built-in 10/100Mbps Ethernet port
  • Multi browsers support (IE, Google, Firefox, Safari, Opera, Netscape)


  • Provides Install Wizard to ease users' setting of parameters
  • Events notification by sending pop-up message, trap, SMS or e-mail
  • Supports Management Information Base (MIB) files for SNMP
  • Naming support for outlets
  • Power-on sequencing intelligently turns on/off devices based on event occurrence or planned schedule
  • Voltage, current, wattage and total kWh report
  • Sets over-current watchdog for each power outlet
  • External UPS can be installed for a possible power outage


  • Web page supports 1024-bit SSL security encryption transmission
  • Supports Secure Socket Layer V3 and Secure Shell V1 protocols
  • Administrator and multiple users with password protection for double-layer security
  • IP Filtering -- Address-specific IP security masks to prevent unauthorized access

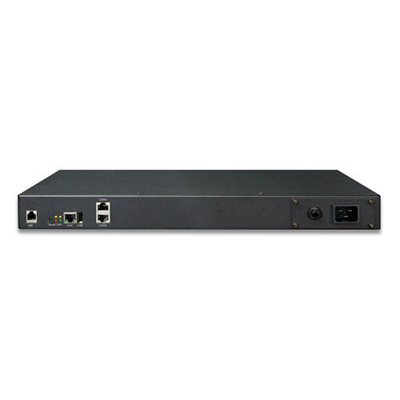

Hardware Specifications

Outlet Power Port: 8
Inlet Power Port: 1
Sensor Port: 1 x RJ11-type, 6P
Com Port: 2 x RJ45-type
Network Connector: 1 x RJ45 port for 10/100BASE-TX
Button: 1 x Switch button
1 x Set button
1 x Reset button
LED: 1 x Alarm LED
1 x System LED
1 x Reset and warning indicating LED
8 x Outlet status LED
LCD Panel: Displays total current, max. alarm, voltage and IP
Housing: Metal
Dimensions (W x D x H): 432 x 153 x 44 mm
Weight: 2.5kg
Installation: 1U rack-mountable, desktop
Buzzer: 1
Breaker: 1 x 16A

Power Distribution

Voltage: 100~240V
Frequency: 50~60Hz
Connection: Inlet Power: 1 x IEC320 C20
Outlet Power: 8 x IEC320 C13
Maximum Current: 16A
Maximum Outlet Line Current: 10A


User Account: General/Manage/Administrator
Management Utility: Web browser, SNMP software, Windows-based utility
Security: IP filter/MAC filter/Secure 128-bit SSL encryption

Standards Conformance

Computer Interface: IEEE 802.3 10BASE-T
IEEE 802.3u 10/100BASE-TX
Regulatory Compliance: CE, FCC


Operating Temperature: 0 ~ 60 degrees C
Operating Humidity: 0 ~ 90%
Operating Altitude: 0-4500 meters
