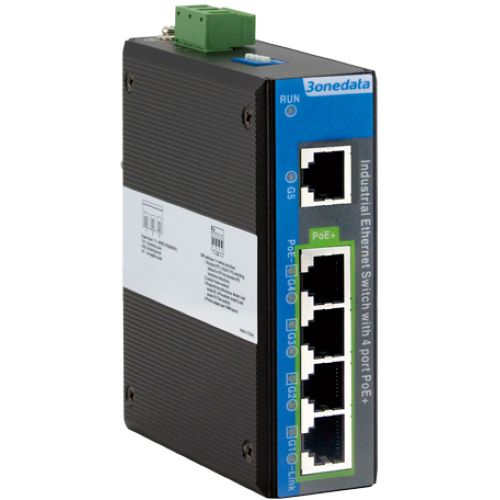

IPS2000G-1GT-4GPOE, Layer 2 Unmanaged Industrial PoE Switch, 4 port 10/100/1000 Base-T(X) POE / POE++1 port 10/100/1000 Base-T(X) (RJ45) , single power supply 44-57VDC
IPS2000G-1GT-4GPOE
Layer 2 Unmanaged Industrial PoE Switch, 4 port 10/100/1000 Base-T(X) POE / POE++1 port 10/100/1000 Base-T(X) (RJ45) , single power supply 44-57VDC
SPEDIZIONE GRATUITA
Introduction
IPS2000 series are 5-port full gigabit layer 2 unmanaged industrial PoE Ethernet switches and the PoE power supply is up to the protocol standard of IEEE 802.3af/at. This series have three products and provide gigabit copper ports, fiber ports, SFP slots and PoE copper ports. They adopt DIN-Rail mounting or wall mounting, which can meet the requirements of different scenes. The DIP switch could implement the switch of standard PoE power supply modes (IEEE 802.3af or IEEE 802.3at), flow control, jumbo frames and RJ45 Forced 100M. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.
Features
- Support 1 gigabit copper/fiber port and 4 gigabit PoE copper ports
- The maximum power consumption of single port PoE is 30W
- PoE could power device over Ethernet, thus decreasing the cable connection of powered devices
- Input power voltage 48VDC
- Support – 40~75℃ wide operating temperature range
Specifications
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
PoE
The maximum power consumption of PoE port: 30W
The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6
Interface
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control,
Full/half Duplex Mode, MDI/MDI-X Autotunning
Fiber port: 1000Base-FX, SC/ST/FC optional
SFP slot: 100/1000Base-SFP
LED Indicator
Running Indicator, Port Indicator, PoE Indicator
Switch Property
Transmission mode: store and forward
MAC address: 8K
Packet buffer size: 1Mbit
Backplane bandwidth: 14G
Switch time delay: <10μs
Power Requirement
12~48VDC(PoE 48VDC), 3-pin 7.62mm pitch terminal blocks
Support 3A over-current protection
reverse polarity protection
Power Consumption
No-load(@48VDC): 1.49W
Full-load(@48VDC): 63.60W
Environmental Limit
Operating temperature range: -40~75℃
Storage temperature range: -40~85℃
Relative humidity: 5%～95% (no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail mounting or wall mounting
Dimension (W x H x D): 35mm×110mm×95mm
Weight: ≤400g
Industrial Standard
IEC 61000-4-2 (ESD), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT), Level 3
IEC 61000-4-5 (Surge), Level 3
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS
Warranty
5 years
