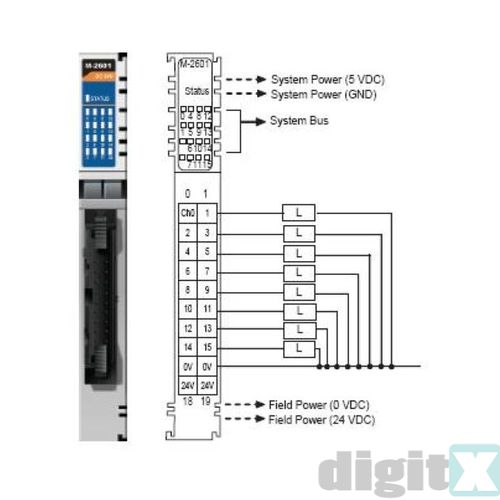

M-2601, 16DO, source, MOSFET, 24VDC, 0.3A, 20pin
M-2601
16DO, source, MOSFET, 24VDC, 0.3A, 20pin
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Prodotti Correlati
Certificati
Features
- 16 digital outputs, source, 24 VDC, 0.3A
Specifications
Digital Outputs: 16 channels, source type
Output Voltage Range: 24 VDC nominal, min. 11 VDC to max. 28.8 VDC
On-state Voltage Drop: Max. 0.3 VDC @ 25°C
On-state Current: Min. 1 mA per channel
Off Leakage Current: Max. 50 µA
Current Rating:
0.3 A per channel
4 A per common
Common Type: 16 channels for 2 COMs (single common)
Power Consumption: 80 mA @ 5 VDC
