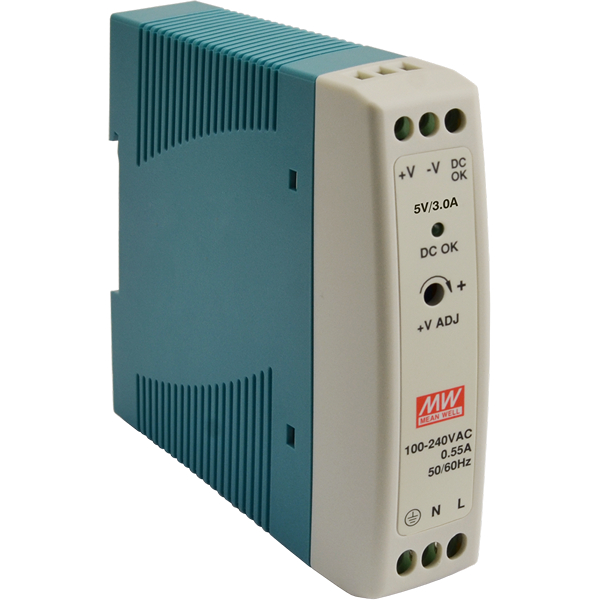

MDR-20-5 Mean Well Alimentatori Guida DIN

Features

• Universal AC input / Full range
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Can be installed on DIN rail TS-35/7.5 or 15
• Built-in DC OK active signal
• Led indicator for power on
• No load power consumption<0.75W
• 100% full load burn-in test
• 3 years warranty

Specifications

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 3A
CURRENT RANGE: 0 ~ 3A
RATED POWER: 15W
RIPPLE & NOISE (max.): 80mVp-p
VOLTAGE ADJUSTABLE RANGE: 4.75 ~ 5.5V
VOLTAGE TOLERANCE: ±2.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 30ms/230VAC          1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC          20ms/115VAC at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 76%
AC CURRENT (Typ.): 0.55A/115VAC          0.35A/230VAC
INRUSH CURRENT (Typ.): COLD START 20A/115VAC          40A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 160% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE: 5.75 ~ 6.75V
Protection type: Shut down o/p voltage, re-power on to recover

FUNCTION

DC OK ACTIVE SIGNAL (max.): 3.75 ~ 6V / 50mA

ENVIRONMENT

WORKING TEMP.: -20 ~ +70°C (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/°C (0 ~ 50°C)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC

SAFETY STANDARDS: UL508 TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS62368.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
EMC IMMUNITY: Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024,EN61000-6-1,EN61204-3, light industry level, criteria A, EAC TP TC 020

MTBF: 236.9K hrs min.      MIL-HDBK-217F (25℃)
DIMENSIONS: (WxHxD) 22.5 x 90 x 100 mm
