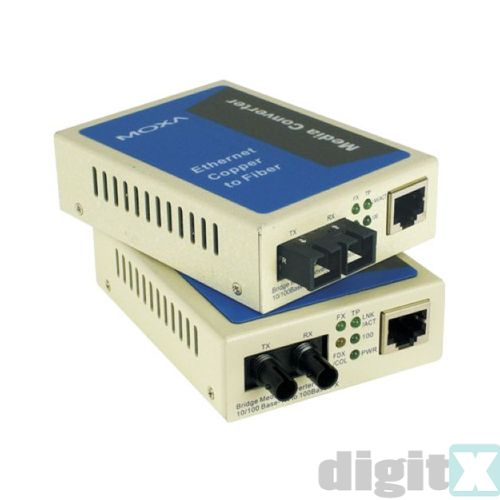

ME51-M-SC MOXA ethernet to Fiber Converters

Features

• Supports 10/100BaseT(X) auto-negotiation
• Supports Link Fault Pass-Through
• Powered by an external power adapter or USB port on hosting device
• TP port's connection speed and half/full mode are DIP Switch selectable
• Fiber connection's half/full duplex mode is DIP Switch selectable

Introduction

MOXA Media Converter is a standalone physical layer device that converts between 10/100BaseT(X) and 100BaseFX segments of the same network. The converter supports Link Fault Pass-Through for easily tracing network link failures, and the LFP function enhances the integrity and conformity of TP-Fiber linking to make the network easier to maintain. ME51 is powered by an external power adaptor or USB port on the hosting device (e.g., PC or NB). The option of using USB port power, which is unique to ME51 for products of this type, offers greater flexibility when deploying ME51 in the field. The Link Fault Pass-Through feature overcomesa problem encountered when using traditional media converters.The problem is this. When one side of the link fails,the other side continues transmitting packets, and thenwaits for a response that never arrives from the disconnectedside. What ME51 does is force the link to shut downas soon as it notices that the other link has failed,giving the application software a chance to react tothe situation. ME51 is powered by an exteranl power adaptoror USB port on the hosting device (e.g., PC). The optionof using USB port power, which is unique to ME51 forproducts of this type, offers greater flexibility whendeploying ME51 in the field.

Specifications

Standards: IEEE802.3,802.3u, 802.3x

Interface

RJ45 ports: 10/100BaseT(X)
Fiber ports: 100BaseFX (SC, ST connectors available)
LED Indicators: Power, LNK/ACT, 100, FDX/COL
DIP Switch:
     FX: FDHDX, Link Fault Pass-Through
     TP:FDX/HDX, 100/10M, AUTO/Force

Optical Fiber

TP port: Cat. 5 for up to 100 m
Multi-mode fiber: 50/125, 62.5/125, or 100/140 µm multi mode fiber, 412 m for half duplex, 2 km for full duplex (ME51-M)
Single-mode fiber: 8.3/125, 8.7/125, 9/125 or 10/125 µm single mode fiber, 20 km for full duplex (ME51-S)
Wavelength: 1310 nm
Min. TX Output: 19 dBm (ME51-M); -15 dBm (ME51-S)
Max. TX Output: 14 dBm (ME51-M); -8 dBm (ME51-S)
Sensitivity: -30 dBm (ME51-M); -31 dBm (ME51-S)

Power

Input Voltage: 5 VDC adaptor or USB port
Input Current: ExternalPower Adapter: 1A @ 5 VDC, USB InterfacePower: 0.5A @ 5 VDC

Mechanical

Dimensions (D x W x H): 94 x 70.3 x 26.2 mm

Environmental

Operating Temperature: 0 to 50
Ambient Relative Humidity: 5 to 90% (non-condensing)
Regulatory Approvals: CE, FCC
