MGate MB3170I-T MOXA Modbus Gateways

MGate MB3170I-T MOXA

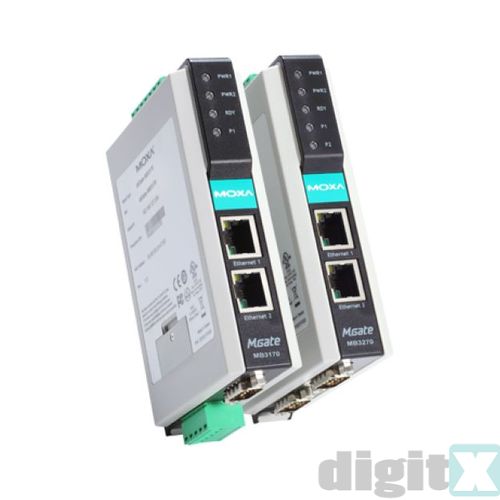

MGate MB3170I-T

1 Port Modbus TCP - Serial Comm. Gateway advanced, 3 in 1, -40~75°, with 2 KV Isolation

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 561,59
3+ pz.€ 544,74
5+ pz.€ 533,51

Prezzo di 1 pz. iva (22%) inclusa: € 685,14

Disponibilità: 15 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: MOXA

SKU: 65606

Model: MGate MB3170I-T

Line: Server seriali - convertitori ethernet seriale rs 232, 422 e 485

Prodotti Correlati

Features and Benefits

  • Configuration is exceptionally easy
  • Slave mode supports 16 TCP masters and up to 31 or 62 serial slaves at the same time
  • Master mode supports 32 TCP slaves at the same time
  • Emergency request tunnels ensure QoS control
  • Serial redirector function provided
  • Embedded Modbus protocol analyzer
  • Redundant dual DC power inputs
  • Built-in Ethernet cascading for easy wiring
  • MGate MB3170/3270 Modbus gateway has received Taiwan Excellence and Good Design awards.

Introduction

The MB3170 and MB3270 are advanced Modbus gateways that provide maximum flexibility for integrating industrial Modbus networks of all types and sizes. They are designed to integrate Modbus TCP, ASCII, and RTU devices in almost any master and slave combination, including serial master to serial slave, or simultaneous serial and Ethernet masters. A special priority control feature allows urgent commands to obtain an immediate response. All models are ruggedly constructed, are DIN-rail mountable, and offer built-in optical isolation for serial signals as an option. The MB3270 can integrate Modbus TCP with Modbus RTU/ASCII, without modifying the existing Modbus RTU/ASCII architecture or software. With the serial redirector function, a serial master can maintain direct access to serial slave devices through a specially mapped serial port. This allows the serial and TCP masters to access serial slaves simultaneously. Advanced models of the MGate™ MB3000 series have two Ethernet ports to make network wiring easier. Dual Ethernet ports allow users to string multiple Modbus gateways together using standard RJ45 Ethernet cables, eliminating the need for a separate Ethernet switch. Advanced models of the MB3000 series have dual power inputs for greater reliability. The power inputs allow simultaneous connections to two live DC power sources, so that continuous operation is provided even if one power source fails. The higher level of reliability makes these advanced Modbus gateways ideal for demanding industrial applications. A relay output is provided for the Ethernet link and power input status. The relay output gives maintenance engineers an additional tool for troubleshooting and maintenance. As Modbus networks increase in size and complexity, the lag time between commands and responses becomes a major concern. Advanced models of the MB3000 series provide a priority control function for urgent commands, allowing users to force certain commands to get an immediate response. Depending on your system’s requirements, different methods are available to define which commands receive priority.

Ethernet Interface

Protocol: Modbus TCP
Number of Ports: 2 (1 IP, Ethernet cascade)
Speed: 10/100 Mbps, Auto MDI/MDIX
Connector: 8-pin RJ45
Magnetic Isolation Protection: 1.5 kV (built-in)

Serial Interface

Protocol: Modbus RTU/ASCII Slave/Master
Number of Ports:
     MB3170/3170I: 1
     MB3270/3270I: 2
Serial Standards: RS-232/422/485, software selectable
Connectors:
     MB3170/3170I: DB9 male for RS-232, terminal block for RS-422/485
     MB3270/3270I: DB9 male x 2
Magnetic Isolation Protection: 2 kV (for “I” models)
ESD Protection: 15 kV for all signals
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485: 1 kΩ, 150 kΩ
Terminator for RS-485: 120 Ω

Serial Communication Parameters

Data Bits: 7, 8
Stop Bits: 1, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, DTR/DSR (RS-232 only)
Baudrate: 50 bps to 921.6 kbps

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Software

Configuration Options: Web Console, Serial Console, Telnet Console, Windows Utility
Utility: MGate Manager for Windows 2000/XP/2003/Vista/Server 2008/7/8 (x86/x64), Windows Server 2008 R2/2012 (x64)
Multi-master and Multi-drop: Master mode: 32 TCP slaves
Slave mode: 16 TCP masters (request queue 32-deep for each master)
Support: Smart Routing, Serial Redirection, ProCOM, Priority Control, MXview, SNMP v1 (read only)

Physical Characteristics

Housing: Plastic
Weight:
     MGate MB3170: 360 g
     MGate MB3270: 380 g
Dimensions:
     Without ears: 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
     With ears extended: 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)

Environmental Limits

Operating Temperature:
     Standard Models: 0 to 60°C (32 to 140°F)
     Wide Temp. Models: -40 to 75°C (-40 to 167°F)
     Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m (795 hPa), higher altitudes on demand

Power Requirements

Input Voltage: 12 to 48 VDC
Power Connector: Terminal block
Power Consumption:
     MGate MB3170: 435 mA (max.)
     MGate MB3170I: 555 mA (max.)
     MGate MB3270: 435 mA (max.)
     MGate MB3270I: 510 mA (max.)
Relay Output: 1 digital relay output to alarm (normal close): Current carrying capacity 1 A @ 30 VDC

Standards and Certifications

Safety: UL 508, EN 60950-1
Hazardous Location:
     UL/cUL Class 1 Division 2 Groups A/B/C/D,
     ATEX Zone 2 Ex nA IIC T3 Gc, IECEx (-IEX model only)
EMC: CE, FCC
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS:
     EN 55024,
     EN 61000-4-2 (ESD) Level 3,
     EN 61000-4-3 (RS) Level 3,
     EN 61000-4-4 (EFT) Level 4,
     EN 61000-4-5 (Surge) Level 3,
     EN 61000-4-6 (CS) Level 3,
     EN 61000-4-8 (PFMF) Level 1,
     EN 61000-4-11
Marine: DNV
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6

Reliability

MTBF (mean time between failures):
     MGate MB3170: 210,794 hrs
     MGate MB3270: 125,234 hrs

Warranty

Warranty Period: 5 years
