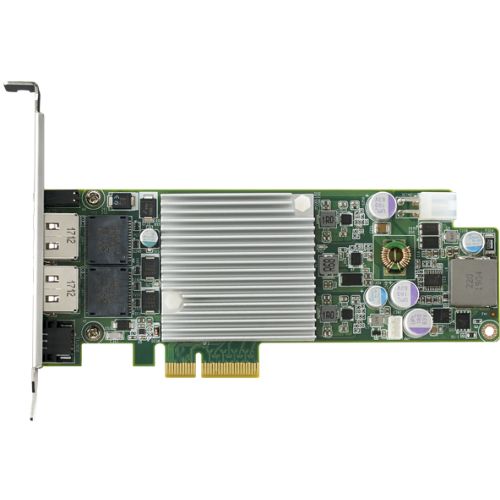

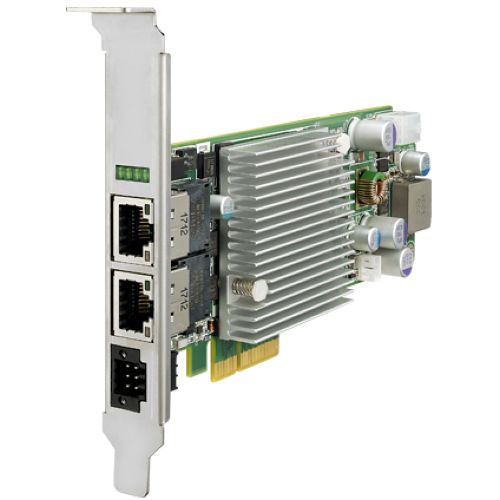

PCIE-1182-AE ADVANTECH Interface Card

 Features

• Intel server-grade X550-AT2 10GbE MAC+PHY Ethernet Controller
• Supports Jumbo frame (16,000 byte) and link aggregation
• PCI Express x4 compliant, low profile
• PoE+ compliant, dual channel 12VDC output
• Programmable PoE+ power on/off control
• Powered Device (PD) auto detection and classification

Introduction

PCIe-1181/1182 series is PCI Express® 10 GigE Vision frame grabber which supports 1 or 2 independent 10,000/5,000/1,000/100 BaseT(X), 802.3at (PoE+)compliant Ethernet
ports. With 12 VDC power output, the PCIE-1181/PCIE-1182 can provides up to 24 watts for each of 2 12VDC output port. It allows power to be supplied to connected devices, such
as 10 GigE cameras, LED lighting in machine vision system. Features with16,000 byte Jumbo frame and programmable PoE+ power control, the PCIE-1181/PCIE-1182 series can
significantly reduce the CPU workload, and increase the reliability for high performance, robust and reliable machine vision applications.

Specifications

Ethernet Communications

Compatibility: IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at
Speed: 10,000/5,000/1,000 Mbps
No. of Ports: 2, 10GBASE-T MAC and PHY.
Port Connector: 8-pin RJ45 Copper
Bus Interface: PCI Expressx4 compliant

Protection

ESD: 8KV (air), 6KV (contact)
EFT: 2 KV
Surge Protection: 1 KV

Power Requirements

Input Voltage: 12 VDC direct from PCIe slot, or with optional 12 VDC AT/ATX power jack input
Overload Current Protection: Present
Connection: AT/ATX Power Jack
PoE+ output: 60W (2 port) / 30Watt (1 port), protect by recoverable eFuse
VDC output: 12 VDC up to 48Watt (2 port) / 24Watt (1 port), protect by recoverable eFuse

Environment

Operating Temperature: 0 ~ 60°C (32 ~ 140°F)
Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
Operating Humidity: 5 ~ 95% RH

Mechanics

Dimensions (W x D): 167 x 68.9 mm, PCIe low profile
Weight: 300g

Certification

Compliance: FCC CE Class A
