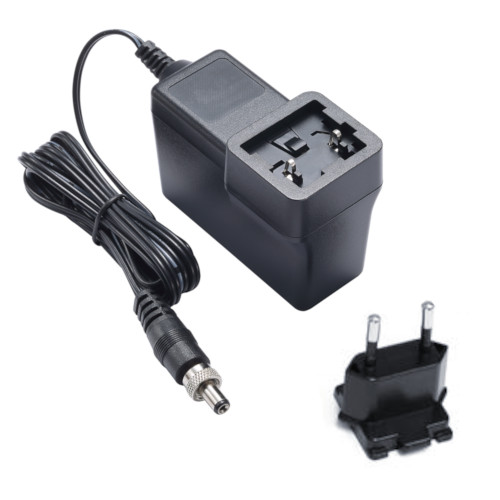

PWR-12050-WPEU-S1, 12V 0.5A, 5.5/2.1/7.5, w/Nut, w/EU Plug
Features
Locking barrel plug, 12VDC 0.5A, 100-240VAC with Continental European (EU) Plug, 0 to 40°C
Specifications
Input Rating
I/P: 100-240 VAC, 50-60 Hz
Input Plug
Plug Type: EU
Output Rating
O/P: 0,5 A @ 12 VDC
Output Plug
Connector Type: S-Type 5.5/2.1/7.5
Outer Diameter: 5.5 ± 0.1 mm
Inner Diameter: 2.1 ± 0.1 mm
Physical Characteristics
Dimensions: 64 x 40.5 x 68.7 mm
Weight: 70 g
Cord Length: 1530 ± 100 mm
Environmental Limits
Operating Temperature: 0 to 40°C (32 to 104°F)
Regulatory Approvals
Safety: CE/FCC/UL/GS/PSE/RCM/CCC
