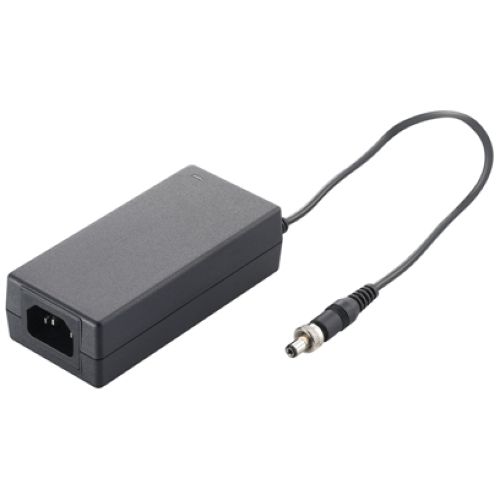

PWR-12200-DT-S1, ADP/SW/D 12V/2A 5.5/2.1/7.5/180D w/Nut
PWR-12200-DT-S1
ADP/SW/D 12V/2A 5.5/2.1/7.5/180D w/Nut
Prodotti Correlati
Input Rating
I/P: 100-240 VAC, 50-60 Hz
Input Plug
Plug Type: Desktop
Output Rating
O/P: 2 A @ 12 VDC
Output Plug
Connector Type: S-Type 5.5/2.1/7.5
Outer Diameter: 5.5 ± 0.1 mm
Inner Diameter: 2.1 ± 0.1 mm
Physical Characteristics
Dimensions: 110.8 x 51.8 x 32 mm
Weight: 200 g
Cord Length: 1800 ± 200 mm
Environmental Limits
Operating Temperature: 0 to 40°C (32 to 104°F)
Regulatory Approvals
Safety: UL/CE/FCC/GS/CCC/PSE/BSMI/TUV
