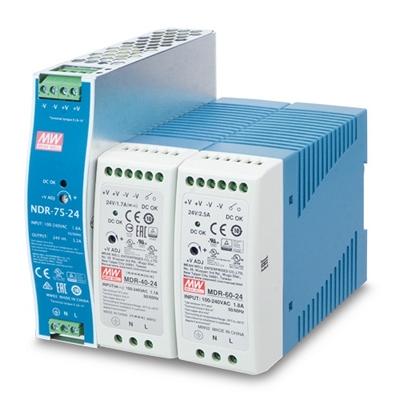

MDR-40-24-MW
40W/1.7A DIN-Rail 24V VDC power supply with universal 85 to 264 VAC input: -20~70°C
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- class I, Div 2 Hazardous Locations T4
- Led indicator for power on
- DC OK relay contact
- No load power consumption<0.75W
- 100% full load burn-in test
- 3 years warranty
Specifications
OUTPUT
DC VOLTAGE: 24V
RATED CURRENT: 1.7A
CURRENT RANGE: 0 ~ 1.7A
RATED POWER: 40.8W
RIPPLE & NOISE (max.): 150mVp-p
VOLTAGE ADJUSTABLE RANGE: 24 ~ 30V
VOLTAGE TOLERANCE: ±1.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 20ms/115VAC at full load
INPUT
VOLTAGE RANGE: 85 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 1.1A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC
PROTECTION
OVERLOAD: 105 ~ 150% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 31.2 ~ 36V
Protection type: Shut down o/p voltage, re-power on to recover
FUNCTION
DC OK SIGNAL: Relay contact rating(max.): 30V/1A resistive
ENVIRONMENT
WORKING TEMP.: -20 ~ +70°C (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/°C (0 ~ 50°C)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY & EMC
SAFETY STANDARDS: UL508, UL62368-1, TUV EN62368-1, class I,Div.2 Group A, B, C, D Hazardous Locations T4, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 60950.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
EMC IMMUNITY: Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, EAC TP TC 020
MTBF: 301.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSIONS: (WxHxD) 40 x 90 x 100 mm
