SNAP-12ST-SC-MM DINSPACE Patch Panels DIN Rail

SNAP-12ST-SC-MM DINSPACE

SNAP-12ST-SC-MM

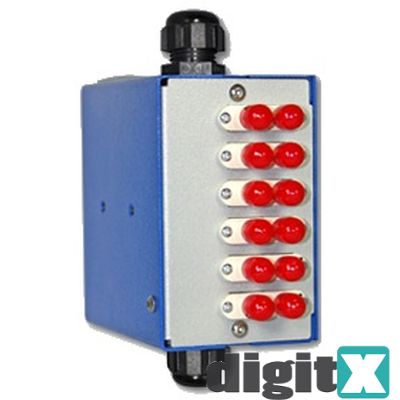

SNAP Compact Fiber Optic Patch Panel with 6ea. multimode ST/SC duplex fiber adapters.

Prezzo per pezzo

€ 242,30

(IVA esclusa)

€ 295,61 (IVA inclusa)

Articoli Prezzo (IVA esc.)
1+ pz.€ 242,30
3+ pz. € 218,0710
5+ pz. € 205,9615
8+ pz. € 193,8420

Prezzo di 1 pz. iva (22%) inclusa: € 295,61

Brand: DINSPACE

SKU: 93153

Model: SNAP-12ST-SC-MM

Bisogno di aiuto?


Features and Benefits

  • Compact size perfect for limited space enclosures
  • UL Listed 1863
  • Versatile surface or DIN-Rail mount capability
  • Slide-hinged faceplate aids field termination
  • Patch or fusion splice field termination standard
  • Rugged metal construction with lifetime warranty
  • One splice holder for up to 12 heat-shrink splices

Introduction

Compact DIN-Rail or surface mount fiber optic patch panel. Compact size allows minimum space requirements within control cabinetry. Device includes a splice tray to allow fusion splicing of field cabling (pigtails sold separately). Device features a sliding faceplate with capture mechanism to allow patch panel to be kept open “hands-free”.

Specifications

Standards: UL Listed 1863 (Communications-Circuit Accessories), CE
Operating temperature: -40°C to 75°C
Storage/transport temperature: -40°C to 80°C
Relative humidity (non-condensing): 10% to 95%
Insertion Loss: ≤.3dB (Multimode), ≤.2dB (Singlemode)
Plug/Unplug Durability: 1000 times

Mechanical Construction

Dimensions with adapters installed: (H x D x W) 6.25” x 5.125” x 2.75”
Mounting Options: Rear DIN-Rail, Side DIN-Rail or surface mount
Weight: 1.5lbs.
Protection class: IP20

Materials of Construction

Patch panel body and faceplate: 18 gauge powder-coat painted steel
Fiber optic adapters: UL 90 V-0 Thermoplastic
Cable Glands: Plastic with max. cable diameter of 12mm (14mm max. also available)

Warranty

Lifetime warranty on materials and workmanship.

Scope of Delivery

Patch panel, DIN-Rail mounting adapter, 2ea. cable glands.

Disclaimer
