SNAPXL-48LC-SM

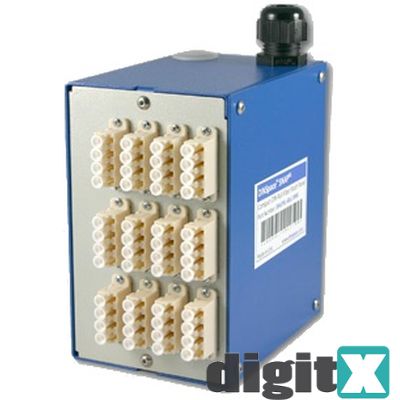

SNAP XL Compact Fiber Optic Patch Panel with 12ea. singlemode LC/LC quad fiber adapters.
Features and Benefits
- Compact size perfect for limited space enclosures
- UL Listed 1863
- Versatile surface or DIN-Rail mount capability
- Slide-hinged faceplate aids field termination
- Patch or fusion splice field termination standard
- Rugged metal construction with lifetime warranty
Introduction
Compact DIN-Rail or surface mount fiber optic patch panel, with double the fiber connections of the standard SNAP patch panel. Compact size allows minimum space requirements within control cabinetry. Device includes splice trays to allow fusion splicing of field cabling (pigtails sold separately). Device features a sliding faceplate with capture mechanism to allow patch panel to be kept open “hands-free”.
Specifications
UL Listed 1863 (Communications-Circuit Accessories), CE
Operating temperature: -40°C to 75°C
Storage/transport temperature: -40°C to 80°C
Relative humidity (non-condensing): 10% to 95%
Insertion Loss: ≤.3dB (Multimode), ≤.2dB (Singlemode)
Plug/Unplug Durability: 1000 times
Mechanical Construction
Dimensions with adapters installed: (H x D x W) 7.75” x 5.75” x 3.5”
Mounting Options: Rear DIN-Rail, Side DIN-Rail or surface mount
Weight: 2.3lbs.
Protection class: IP20
Materials of Construction
Patch panel body and faceplate: 18 gauge powder-coat painted steel
Fiber optic adapters: UL 90 V-0 Thermoplastic
Cable Glands: Plastic with max. cable diameter of 12mm (14mm max. also available)
Warranty
Lifetime warranty on materials and workmanship.
Scope of Delivery
Patch panel, DIN-Rail mounting adapter, 2ea. cable glands.
