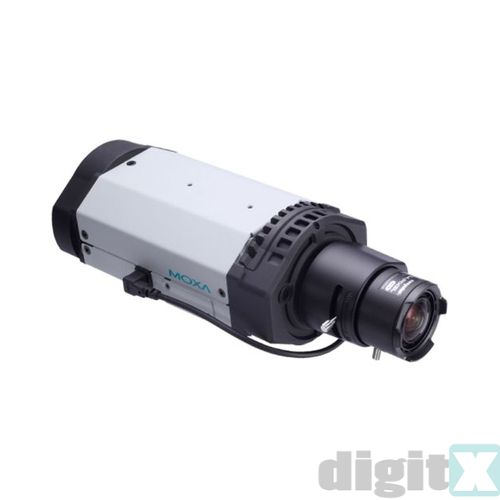

VPort 36-1MP-T MOXA Ip cameras

Features and Benefits

• Industrial design with -40 to 75°C operating temperature (heater or cooling fan not required)
• 1/2.7” progressive scan CMOS camera with HD resolution (max. 1280 x 720)
• DNR/WDR technologies for superb video/image quality
• Up to 3 independent video streams (2 H.264/1 MJPEG)
• Compatible with CS/C mount lenses with built-in ICR support
• EN 50121-4 and NEMA TS2 compliant
• Supports DynaStream™ for optimized network efficiency
• SD storage for event and disconnection recording

Introduction

The VPort 36-1MP series is the world’s first rugged IP camera that can operate reliably in temperatures ranging from -40 to 75°C, without a heater or cooling fan. The VPort 36-1MP series is designed to be compatible with C/CS mount lenses to meet any viewing angle and distance requirement. With a built-in, removable IR-cut filter and automatic color mode switching, the VPort 36-1MP series is suitable for either day or night use. Highly-tuned ROI (Regions of Interest), and WDR (Wide Dynamic Range) functions enable the VPort 36-1MP series to produce exceptionally clear images. The VPort 36-1MP is a unique and competitive camera in the IP CCTV market, with features such as high EMI/surge protection, optional IP66 housing for rain/dust protection, and -40 to 75°C operation without a heater or cooling fan. The camera is available with PoE (Power over Ethernet, 802.3af) or wire power input supporting 12/24 VDC or 24 VAC. The VPort 36-1MP can encode analog video into both H.264 and MJPEG video streams and can transmit up to 3 independent video streams (2 in H.264, and 1 in MJPEG) simultaneously. Advanced video encoding technology enables the camera to support up to 30 FPS for each of the H.264 and MJPEG streams.

Camera

Sensor: 1/2.7” HD progressive scan CMOS
Lens: Designed for C/CS mount lens (lens not included)
Auto Iris Type: DC drive
Illumination (low light sensitvity):
     Color: 0.2 lux at F1.2
     B/W: 0.05 lux at F1.2
White Balance: ATW/AWB (range: 3200 to 10000°K)
Dynamic Range:
     Color: 100 dB
     B/W: 110 dB
Auto Electronic Shutter: 1/30 to 1/25000 sec.
Electronic Shutter: Auto
S/N Ratio: 50 dB (Gamma, Aperture, AGC OFF; DNR ON)
ICR Control: Auto (light sensor control) or DI control
DNR: Built-in DNR
WDR: Levels 1-8
AGC Control: 2X, 4X, 8X, 16X, 32X, 64X
Flickerless Control: Indoor/Outdoor mode
Black Level Control: High/Medium/Low
Auto Exposure: Level ±5
Image Rotation: Flip, Mirror, and 180° rotation
Image Setting: Manual tuning with saturation, sharpness, and contrast

Video

Video Compression: H.264 (ISO/IEC 14496-10) or MJPEG
Video Outputs: Ethernet
Video Streams: 3 video streams (2 x H.264 and 1 x MJPEG)
Video Resolution and FPS (frames per second): Mulitple streams may not support up to 30 FPS.
Video Viewing:
     DynaStream™ supported for automatic adjustment of frame rate
     3 privacy mask areas provided
     Adjustable image size and quality
     Timestamp and text overlay
     Maximum of 5 simultaneous unicast connections
PTZ: Digital PTZ with 4X zoom

Network

Protocols: TCP, UDP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS, SNMPv1/v2c/v3, DDNS, Modbus/TCP, 802.1X, SSH/SSL
Ethernet: 1 10/100BaseT(X) Ethernet port, RJ45 connector

Serial Interface

RS-485: 1 half-duplex RS-485

GPIO

Digital Inputs: 1, max. 8 mA
Low: +13 to +30 V; High: -30 to +3 V
Relay Output: 1, max. 24 VDC @ 1 A

LED Indicators

STAT: Indicates if the system is booted properly or not
Network: 10 Mbps or 100 Mbps
Power: Power on/off

Local Storage

SD Socket: Standard SD socket (SDHC)

Power Requirements

Input
     Power consumption: 7.5 W
     Redundant power inputs
     12/24 VDC, 24 VAC, or Power-over-Ethernet (IEEE 802.3af)

Physical Characteristics

Camera Body Housing: Metal, IP30 protection
Dimensions:
     Camera Body: 78 x 65 x 150 mm
     Outdoor Housing: 134 (diam.) x 318 (L) mm
     Wallmounting Bracket: 205 mm (L)
Weight: 670 g
Installation: Wall mounting, pole mounting, corner mounting
Note: Optional external housing and mounting accessories may be required.

Alarms

Intelligent Video: Camera tamper, virtual fence, alert zone, missing object, unattended object
Note: IVA functions are optional except for camera tamper.
Video Motion Detection: 3 independently configurable motion areas
Scheduling: Daily repeat timing schedule
Imaging: JPEG snapshots for pre/trigger/post alarm images
Video Recording: Event recordings stored on the SD card
Custom Alarms: HTTP event servers for setting customized alarm actions
Email/FTP Messaging: Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-alarm Buffer: 24 MB video buffer for JPEG snapshot images

Security

Password: User level password protection
Filtering: By IP address
Authentication: 802.1X
Encryption: HTTPS, SSH

Environmental Limits

Operating Temperature:
     Standard Models: 0 to 60°C (32 to 140°F)
     Wide Temp. Models: -40 to 75°C (-40 to 167°F)
     Storage Temperature: -40 to 85°C (-40 to 185°F)
     Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

Safety: UL 60950-1
Hazardous Location: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nCnAnL IIC T4
Note: The VP-3113MPIR lens is Class I Div. 2 and ATEX Zone 2 certified.
EMI: FCC Part 15, CISPR (EN 55022) Class A
EMS:
     EN 61000-4-2 (ESD), Level 3,
     EN 61000-4-3 (RS), Level 3,
     EN 61000-4-4 (EFT), Level 3,
     EN 61000-4-5 (Surge), Level 3,
     EN 61000-4-6 (CS), Level 3,
     EN 61000-4-8,
     EN 61000-4-11
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Traffic Control: NEMA TS2
Rail Traffic: EN 50121-4

MTBF (mean time between failures)

Time: 541,826 hours
Database: Telcordia (Bellcore), GB 25°C

Warranty

Warranty Period: 5 years

Minimum Viewing System Requirements

CPU: Pentium 4, 2.4 GHz
Memory: 512 MB of memory
OS: Windows XP/2000 with SP4 or above, Windows Vista, Windows 7
Browser: Internet Explorer 9.x or above
Multimedia: DirectX 9.0c or above

Software Development Kit

VPort SDK PLUS: Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (latest version available on Moxa website).
Standard: ONVIF ProfileS
