WDAP-802AC Planet Access Point Bridge

 Ultra High Speed and Wide Coverage

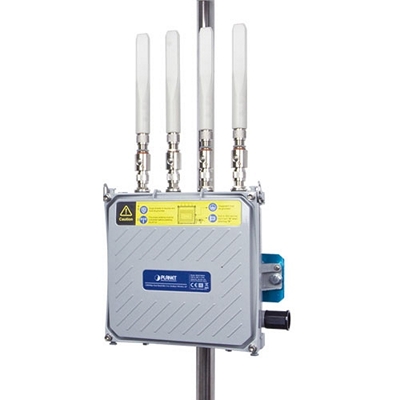

PLANET WDAP-802AC 1200Mbps Dual Band 802.11ac Outdoor Wireless AP offer a wide coverage of wireless Internet access and ultimate wireless speed. It comes with the IP68-rated aluminum case protected from contact with harmful dust and immersion in water. It adopts the latest IEEE 802.11ac 2T2R dual-band technology and provides 2.4GHz and 5GHz dual radios with maximum connectivity and performance for long-range coverage. By connecting high-gain antenna through the flexible N-type connectors, the system integrator can easily assist customers in achieving various outdoor long-distance applications under rough weather in any harsh environment.

Hardware Specifications

Standard Support: IEEE 802.11ac
IEEE 802.11n
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control
Material: Aluminum
Dimensions (W x D x H): 225 x 101.5 x 225 mm
Weight: 4kg
Power Requirements: 48V DC IN,0.5A, IEEE 802.3af/at PoE+
Power Consumption (max.): < 25.5W

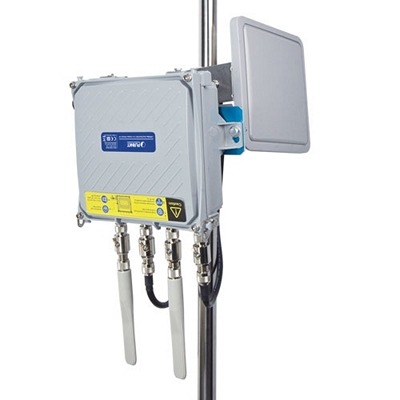

Mounting Type: Mast mounting
Interface: Wireless IEEE802.11a/b/g/n/ac, 2T2R

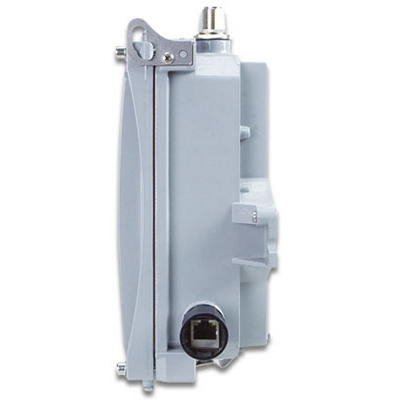

PoE LAN: 1 x 10/100/1000BASE-T, auto-MDI/MDIX, 802.3at PoE In
Button: Reset button (Inside enclosure)

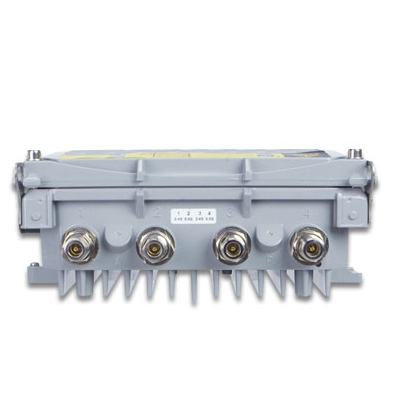

Antenna: Built-in four N-type connectors (female)
Data Rate: IEEE 802.11b: up to 11Mbps
IEEE 802.11a/g: up to 54Mbps
IEEE 802.11n (20MHz): up to 150Mbps
IEEE 802.11n (40MHz): up to 300Mbps
802.11ac (VHT20): Up to 173.3Mbps
802.11ac (VHT40): Up to 400Mbps
802.11ac (VHT80): Up to 867Mbps
Media Access Control: CSMA/CA
Modulation: 802.11ac: OFDM (BPSK/ QPSK/ 16QAM/ 64QAM/ 256QAM)
802.11a/g/n: OFDM (BPSK/ QPSK/ 16QAM/ 64QAM)
802.11b: DSSS (DBPSK/ DQPSK/ CCK)
Frequency Band: 2.4GHz:
　FCC: 2.412~2.462GHz
　ETSI: 2.412~2.472GHz

5GHz:
　FCC: 5.180~5.240GHz, 5.745~5.825GHz
　ETSI: 5.180~5.700GHz
Operating Channels: 2.4GHz:
　FCC: 1~11 Channels
　ETSI: 1~13 Channels

5GHz:
　FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 Channels)
　ETSI: 36, 40, 44, 48, 100, 104, 108, 112, 116, 132, 136,
　　　　140 (16 Channels)

*5GHz channel list may vary in different countries depending on their regulations.
Max. Transmit Power (dBm): FCC: up to 29 ± 1dBm
ETSI: < 20dBm (EIRP)
Receiver Sensitivity (dBm): 2.4GHz:
　802.11b(1Mbps):-99dBm
　802.11b(11Mbps):-92dBm
　802.11g(6Mbps):-95dBm
　802.11g(54Mbps):-82dBm
　802.11n HT20(MCS0/MCS8):-95dBm
　802.11n HT20(MCS7/MCS15):-77dBm
　802.11n HT40(MCS0/MCS8):-93dBm
　802.11n HT40(MCS7/MCS15):-75dBm

5GHz:
　802.11a(6Mbps):-92dBm
　802.11a(54Mbps):-75dBm
　802.11n HT20(MCS0/MCS8):-91dBm
　802.11n HT20(MCS7/MCS15):-72dBm
　802.11n HT40(MCS0/MCS8):-88dBm
　802.11n HT40(MCS7/MCS15):-70dBm
　802.11ac VHT20(MCS0):-92dBm
　802.11ac VHT2(MCS8):-70dBm
　802.11ac VHT40(MCS0):-89dBm
　802.11ac VHT40(MCS9):-65dBm
　802.11ac VHT80(MCS0):-87dBm
　802.11ac VHT80(MCS9):-61dBm

Environment & Certification

Operating Temperature: -40~70 degrees C
Operating Humidity: 10~90% (non-condensing)
IP Level: IP68
ESD Protection: ±8kV air gap discharge
±4kV contact discharge
Surge Protection: ±4kV
Regulatory: CE, RoHS

Software Specifications

LAN: Static IP
Supports IP-MAC binding
WAN Type (GW/WISP mode): ■ Static IP
■ Dynamic IP
■ PPPoE
Wireless Modes: ■ Access Point
■ Gateway
■ Repeater
■ WDS (PtP/PtMP)
■ WISP
Channel Width: 20MHz, 40MHz, 80MHz
Encryption Type: 64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless Security: Enable/Disable SSID Broadcast
Wireless Max. 32 MAC address filtering
User Isolation
Max. SSIDs: 4
Max. Wireless Clients: 64 per radio (50 is suggested, depending on usage)
Max. WDS Peers: 4
Wireless QoS: Supports Wi-Fi Multimedia (WMM)
Wireless Advanced: Auto channel selection
5-level transmit power control (100%, 75%, 50%, 25% and 12.5%)
Client limit control, coverage threshold
Distance control (Auto Ack Timeout)
Wi-Fi channel analysis chart
Fast Roaming
Status Monitoring: Device status, wireless client List
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server
VLAN: IEEE 802.1Q VLAN (VID: 3~4094)
SSID-to-VLAN mapping up to 4 SSIDs
Self-healing: Supports auto reboot settings per day/hour
Management: Remote management through PLANET DDNS/ Easy DDNS
Configuration backup and restore
Supports UPnP
Supports IGMP Proxy
Supports PPTP/L2TP/IPSec VPN Pass-through
SNMP v1/v2c/v3 support, MIB I/II, Private MIB
Central Management: Applicable controllers: WAPC-500, WAPC-1000 and Smart AP Control(SAPC)
