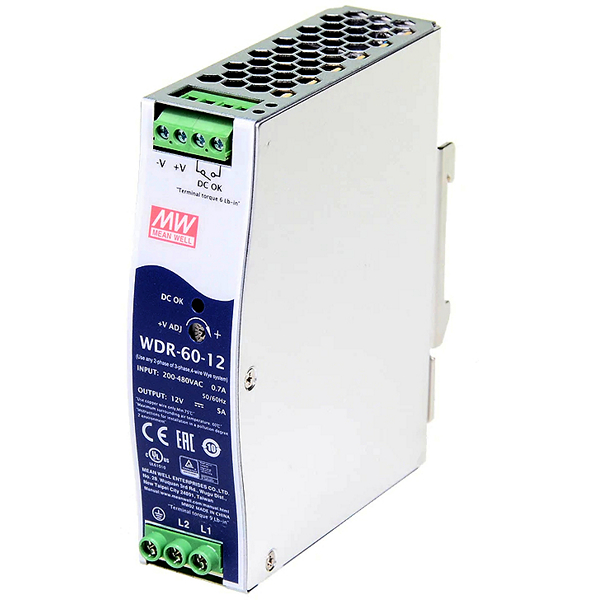

WDR-60-12 Mean Well Alimentatori Guida DIN

Applications

• Industrial control system
• Semiconductor fabrication equipment
• Factory automation
• Electro-mechanical apparatus

Features

• 180 ~ 550Vac ultra wide input for 1-phase or 2-phase
• 32mm slim width
• 4.7KVac I/O high isolation (Reinforced isolation)
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Cooling by free air convection
• Can be installed on DIN rail TS-35/7.5 or 15
• -30~+85°C ultra-wide operating temperature (>+60°C derating)
• Over voltage category Ⅲ
• DC OK relay contact
• DC output voltage adjustable(+20%)
• 3 years warranty

Specifications

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 5A
CURRENT RANGE: 0 ~ 5A
RATED POWER: 60W
RIPPLE & NOISE (max.): 120mVp-p
VOLTAGE ADJUSTMENT RANGE: 12 ~ 15V
VOLTAGE TOLERANCE: ±1.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE, HOLD UP TIME: 1000ms, 70ms, 20ms/400Vac            2000ms, 70ms, 10ms/230Vac at full load

INPUT

VOLTAGE RANGE: 180 ~ 550VAC  (277VAC operational )
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 86.5% / 400Vac
AC CURRENT: 0.4A/400Vac          0.7A/230Vac
INRUSH CURRENT (max.): COLD START 50A /400Vac    30A/230Vac
LEAKAGE CURRENT: <2mA / 530Vac

PROTECTION

OVERLOAD: 105 ~ 135% rated output power
Hiccup mode when output voltage <50% , recovers automatically after fault condition is removed
Constant current limiting within 50% ~ 100% rated output voltage, recovers automatically after fault condition is removed

OVER VOLTAGE: 16 ~ 18V
Protection type: Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE: Protection type: Shut down o/p voltage, re-power on to recover

FUNCTION

DC OK SIGNAL: Relay contact rating(max.): 30V / 1A resistive

ENVIRONMENT

WORKING TEMP.: -30 ~ +85°C (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP.: -40 ~ +85°C
TEMP. COEFFICIENT: ±0.03%/°C (0 ~ 60°C)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE: 2000 meters
OVER VOLTAGE CATEGORY:  Ⅲ;According to EN61558, EN50178,EN60664-1, EN62477-1, EN60204-1;altitude up to 2000 meters

SAFETY & EMC

SAFETY STANDARDS: UL61010, EN61558-2-16, EAC TP TC 004 approved; Design refer to GL and EN60204-1(by request)
WITHSTAND VOLTAGE: I/P-O/P:4.7KVAC     I/P-FG:2.5KVAC     O/P-FG:0.5KVAC     O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION:
EN55032(CISPR32) Conducted: Class B
EN55032(CISPR32) Radiated: Class B
EN61000-3-2 Harmonic Current: Class A
EN61000-3-3 Voltage Flicker

EMC IMMUNITY:
EN55024, EN55035,  EN61000-6-2, EN61204-3
EN61000-4-2 ESD: Level 3, 8KV air; Level 2, 4KV contact, criteria A
EN61000-4-3 Radiated Susceptibility: Level 3, 10V/m, criteria A
EN61000-4-4 EFT/Burest: Level 3, 2KV/5KHz, criteria A
EN61000-4-5 Surge: Level 4, 2KV/Line-Line, 4KV/Line-Earth, criteria A
EN61000-4-6 Conducted: Level 3, 10V, criteria A
EN61000-4-8 Magnetic Field: Level 4, 30A/m, criteria A
EN61000-4-11 Voltage Dips and interruptions: ＞95% dip 0.5 periods, 30% dip 25 periods,
                                                                           ＞95% interruptions 250 periods

MTBF: 313.68K hrs min.      MIL-HDBK-217F (25℃)
DIMENSIONS: (WxHxD) 32 x 125.2 x 102 mm
