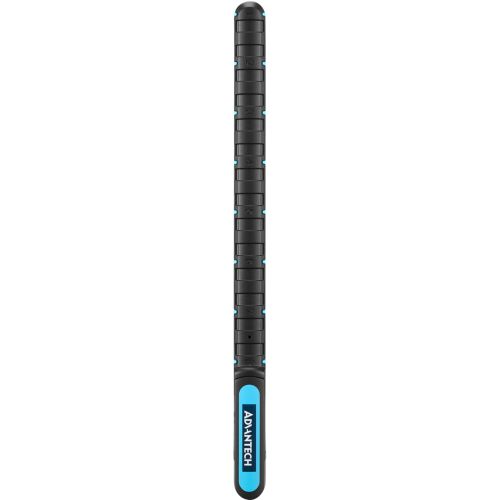

WISE-S100-A ADVANTECH Accessories

Features

• WISE-S100
• One product for all scenarios
• Fits a variety of stack-type light towers

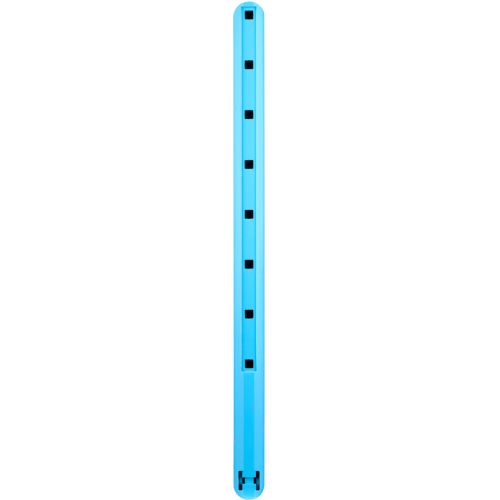

• 8 light sensors for fast flexible installation
• No need to stop the machinery while deployment
• Modbus RTU with RS-485 interface
• Supports more than 20 Modbus addresses per channel
• Remote intelligent OEE solution by pairing with WISE-4000 series wireless I/O module
• Low power consumption for WISE-4000 LPWAN series

Introduction

WISE-S100 is an easy to install intelligent stack light monitoring sensor to fit a variety of stack-type light towers. When WISE-4000 wireless modular I/O series is paired with WISE-S100
sensor, users get a remote and intelligent OEE solution that can be integrated without stopping machinery, or worrying about wiring. WISE-S100 enhances the productivity and overall
equipment effectiveness. It supports WiFi 2.4G and various LPWAN wireless technologies such as LoRaWAN and proprietary LPWAN (SUB-G) which has higher penetration, lower
interference, wider coverage and fits diverse production scenarios on the production line. WISE-4000 LPWAN series come with an optional battery power solution.

Specification

Power

Power Supply: 3.3~30VDC
Power Consumption: 15mA

Generic

Communication Interface: RS-485 (Modbus/RTU)

Ambient Light Sensor

Number of Sensor: 8
Sensor Detection Rate: 3Hz
Measuring Range: 20.48~83865.6 lux
Measuring Light Status: On, Off, Slow Blink, Fast Blink
Peak Irradiance: 550nm (TYP.)
Spectral Responsivity
Resolution: 12 bits
Accuracy*: 15%
*Accuracy of measurement of fluorescent light.
Linearity: Input illuminance > 40 lux, 2% (TYP.)
Input illuminance < 40 lux, 5% (TYP.)
Temperature Drift: 0.02%/℃

Mechanical

Dimension (L x W x H): 220 x 14 x 12.8 (mm)
Material: Polycarbonate (PC)

Environmental

Operating Temperature: -25~70 °C
Storage Temperature: -40~80 °C
Operating Humidity: 5~95% RH
Storage Humidity: 0~95% RH
