AM1U
1U - AM Style Sliding Patch Panel with 3 Position Modular for LGX
Bisogno di aiuto?
Prodotti Correlati
Features
- Up to 3 LGX components in 1U
- 19” and 23” Rack mountable
- Sliding tray for ease of installation
- Integrated Spring loaded tray stop
- Up to 3 x 24 fibre MTP/MPO cassettes
- Multiple adapter options available
- Splicing option available
- Side Patch cord exit
- Hinged front plexi glass door
- Removable top cover
- Accepts loose tube, distribution cable and MTP/MPO trunk cable
- RoHS, REACH SvHC
Introduction

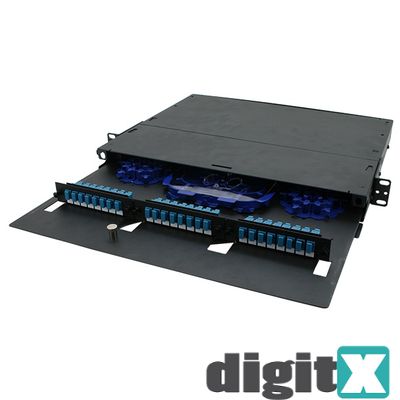

This innovative, robust, 1U sliding panel with a smoked plexi glass hinged front door, has been designed to accept up to 3 LGX style assemblies. With the ability to use a full array of adapter types, this panel offers a flexible solution to the end user, enabling them to incorporate a multi functional chassis that allows easy access during installation or rework with no disturbance of the existing cable or fibres. In the addition to the array of adaptors the panel also offers multiple cable entry solutions, MTP/MPO trunk cables connected to 3 individual MTP/MPO cassettes with up to 24 fibres in each, loose tube cable to be spliced into standard splice cassettes to allow standard splicing or pre terminated solutions, making this panel one of the most flexible on the market.
Specifications
Height: 1U (44.4mm)
Width: 432mm
Depth: 356mm
Net weight: 5.9kg
Packaged weight: 6.3kg
Packaged dimensions: 444mm (W) x 508mm (L) x 102mm (H)
IP rating: Not Applicable
Suitable for Adaptor type: LGX / MTP Cassettes
Number of ports: 3
Material: Cold- rolled steel
Material coating: Powder coating
Material thickness: 1.2mm
Colour: RAL 9004
Operating temperature: -40°C to +60°C
Designed in accordance with: TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1
Compliant to: RoHS, Reach/SVHC
