AM2U

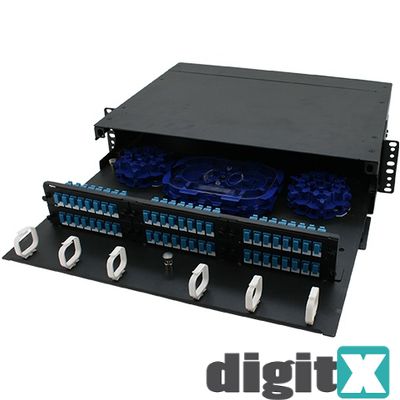

2U - AM Style Sliding Patch Panel with 6 Position Modular for LGX
Bisogno di aiuto?
Prodotti Correlati
Features
Up to 6 LGX components in 2U
19” and 23” Rack mountable
Sliding tray for ease of installation
Integrated Sprung loaded tray stop
Up to 6 x 24 fibre MTP® cassettes
Multiple adapter options available
Splicing option available
Side Patch cord exit
Hinged front plexi glass door
Removable top cover
Accepts loose tube, distribution cable and MTP® trunk cable
RoHS, REACH SvHC
Introduction
This innovative, robust, 2U sliding panel with a smoked plexi glass hinged front door. This panel has been designed to accept up to 6 LGX style assemblies. With the ability to use a full array of adapter types, this panel offers a flexible solution to the end user, enabling them to incorporate a multi functional chassis that allows easy access during installation or rework with no disturbance of the existing cable or fibres. In the addition to the array of adaptors the panel also offers multiple cable entry solutions, MTP® trunk cables connected to 6 individual MTP® cassettes with up to 24 fibres in each, loose tube cable to be spliced into standard splice cassettes to allow standard splicing or pre terminated solutions, making this panel one of the most flexible on the market.
Specifications
Height: 2U (8.89cm)
Width: 432mm
Depth: 356mm
Net weight: 7.5kgs
Packaged weight: 8.0kgs
Packaged dimensions: 510mm (W) x 450mm (L) X 170mm (H)
Suitable for Adaptor type: LGX / MTP Cassettes
Number of Module Positions: 6
Material: Cold- rolled steel
Material thickness: 1.2mm
Material Finish: Powder coating
Colour: RAL 9004
Operating temperature: -40°C to +60°C
Designed in accordance with: TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1
Compliant to: RoHS, Reach/SVHC
