AM3U

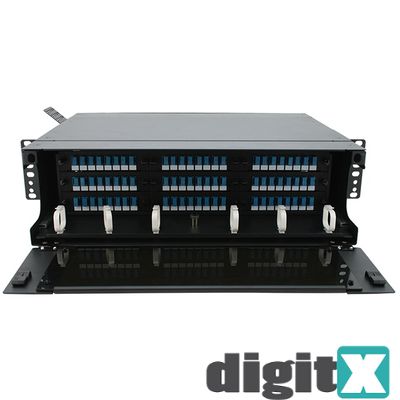

3U - AM Style Sliding Patch Panel with 9 Position Modular for LGX
Bisogno di aiuto?
Prodotti Correlati
Features
- Up to 9 LGX components in 3U
- 19” and 23” Rack mountable
- Sliding tray for ease of installation
- Integrated Sprung loaded tray stop
- Up to 9 x 24 fibre MTP® cassettes
- Multiple adapter options available
- Splicing option available
- Side Patch cord exit
- Hinged front plexi glass door
- Removable top cover
- Accepts loose tube, distribution cable and MTP® trunk cable
- RoHS, REACH SvHC
Introduction
This innovative, robust, 3U sliding panel with a smoked plexi glass hinged front door. This panel has been designed to accept up to 9 LGX style assemblies. With the ability to use a full array of adapter types, this panel offers a flexible solution to the end user, enabling them to incorporate a multi functional chassis that allows easy access during installation or rework with no disturbance of the existing cable or fibres. In the addition to the array of adaptors the panel also offers multiple cable entry solutions, MTP® trunk cables connected to 9 individual MTP® cassettes with up to 24 fibres in each, loose tube cable to be spliced into standard splice cassettes to allow standard splicing or pre terminated solutions, making this panel one of the most flexible on the market.
Specifications
Height: 3U (133.4mm)
Width: 432mm
Depth: 356mm
Net weight: 8.0kg
Packaged weight: 8.5kg
Packaged dimensions: 510mm (W) x 450mm (L) x 210mm (H)
Suitable for Adaptor type: LGX / MTP Cassettes
Number of module positions: 9
Material: Cold- rolled steel
Material thickness: 1.2mm
Material finish: Powder coating
Colour: RAL 9004
Operating temperature: -40°C to +60°C
Designed in accordance with: TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1
Compliant to: RoHS, Reach/SVHC
