KVM-210-08M Planet KVM Switch

KVM-210-08M Planet

KVM-210-08M Planet

KVM-210-08M

17 8-Port Combo VGA LCD KVM Switch

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 928,61

Prezzo di 1 pz. iva (22%) inclusa: € 1.132,90

Disponibilità: 10 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: PLANET

SKU: 115760

Model: KVM-210-08M

Prodotti Correlati

 Easy Switching, Efficient Management

PLANET KVM-210-08M Combo VGA LCD KVM Switch features an integrated 17" LED-backlit LCD panel allowing access to and control up to 8 computers from a single console (keyboard, mouse and monitor). Simply use the supplied Combo VGA cable set to link the KVM-210-08M to the console ports of your KVM Switch, regardless of the connected port interface -- USB or PS/2.

Easy to Install

With the uniquely separate rail design, it helps to install the KVM console easily. Moreover, when there is a need to maintain the console, the administrator can easily uninstall the device without affecting the server above or below.

Computer Switching

There are three convenient methods to access any computer connected to the installation:
Port select button
Hotkeys on keyboard
OSD (on screen display)

Security

Two level password security only authorizes up to one user and an administrator with a separate profile for each user.

Powerful Mouse/Keyboard Support

In the present computer applications, a mouse has become an indispensable device. The KVM-210-08M fully supports all models of PS/2 mice on the market. The KVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, computers or their combination.

Applications

Standalone Operation

The KVM-210-08M allows access to and control up to 8 computers from the LCD control platform.

Cascade Operation

By cascading to 8 KVM switches, it can control up to 64 servers.

Features and Benefits

Hardware

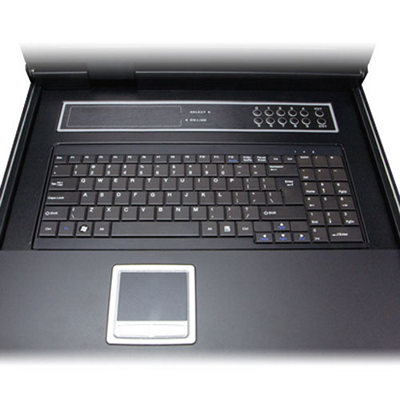

  • Integrated 17” LCD monitor and keyboard/touchpad module within 1U chassis
  • Standalone machine controls up to 8 sets of computers
  • Up to 2 levels can be cascaded and up to 64 computers can be controlled
  • Port Select Panel status LEDs give a clear indication of the active computers
  • Supports high resolution up to 1280 x 1024
  • Mouse touch board with two function buttons
  • Full-size 100-key keyboard with integrated number pad
  • Front panel with lock to prevent damage by accident

Security

  • Two-layer password security protection

Management

  • Auto scan mode for monitoring computers
  • Requires no additional software or hardware
  • Computer selection via Port Select Button, Hotkey and On Screen Display (OSD)
  • Hot pluggable: Add or remove computers without having to power down the switch
  • QVS (Quick View Setting): Quickly select your computer by naming or SN number

Compatibility

  • Multiplatform support -- Windows, Linux and Sun
  • Supports Microsoft Intellimouse, Logitech Net Mouse and all other third party’s PS/2 mice

Specifications

Hardware

Number of Ports: 8
Maximum: 64 by cascading (KVM-210-08 x 8)

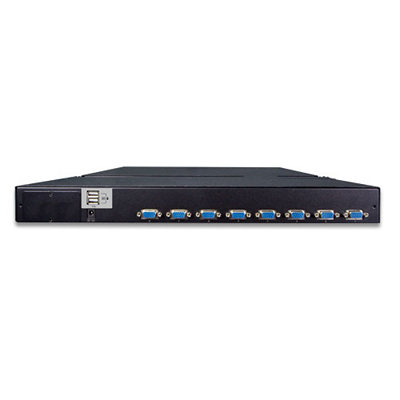

PC Ports: Keyboard: PS/2 female + USB Type A female
 Mouse: PS/2 female + USB Type A female
 Video: 8 x HDB-15 female
Port Select Panel: Number Key: 10
 Reset: 1
 Enter: 1
 LED: 8
 Segment display: 1
LCD Panel: Monitor: 17" SXGA Color TFT-LCD
 Video Resolution: 1280 x 1024
 Pixel Pitch: 0.297 x 0.297 mm
 Support Color: 16.2 M / 262K colors
 Contrast Ratio: 1000:1
 Back light: LED
LCD Button: 6
Console USB Hub Ports: 3 x USB 2.0 Type A female
Keyboard: 100 keys
Touch Pad: 1
Housing: Metal
Dimensions (W x D x H): 445 x 611 x 44.5 mm
Weight: 17.52kg
Power Requirement: 12V DC, 4A
Installation: 1U rack-mountable


Management

PC Selection: Port select button
Hotkeys on keyboard
OSD (on screen display)
Scan Interval: 5~60 seconds
Security: User password and super password

Environment & Certification

Operating Temperature: 0 ~ 50 degrees C
Operating Humidity: 0 ~ 80%
Regulatory: CE, FCC
