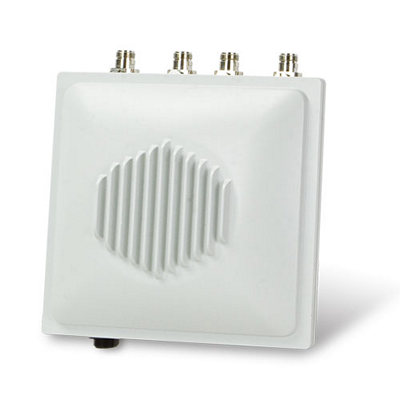

WDAP-8350 Planet Access Point

 Powerful Dual-Band Outdoor WLAN Solution

PLANET WDAP-8350 comes with a high transmission power of 500mW which can bridge two remote nodes in the 5GHz frequency band and provides clients with 2.4GHz wireless access over longer distance range. Its fully-protected hardware design makes it capable to ward off direct lightning strikes and unpredictable harsh weathers. Furthermore, the WDAP-8350 adopts the high-class Qualcomm Atheros SoC (System-on-a-Chip) and Dual-OS Backup mechanism that provide higher stability to meet the stringent requirements of outdoor solution.

Hardware Specifications

Interface: Wireless: IEEE 802.11n concurrent 2.4GHz and 5GHz, 2T2R MIMO
LAN: 10/100/1000BASE-T, auto-MDI/MDIX, IEEE 802.3at PoE PD

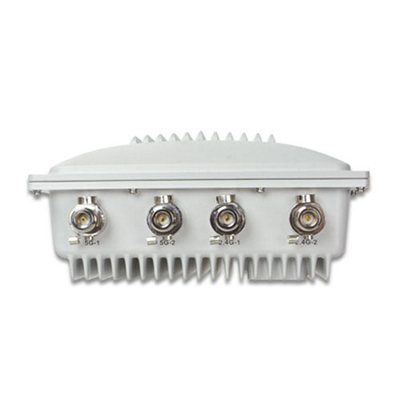

Antenna: Built-in 4 N-Type (female) antenna connectors with surge arrester
※ The outdoor antennas need to be purchased separately

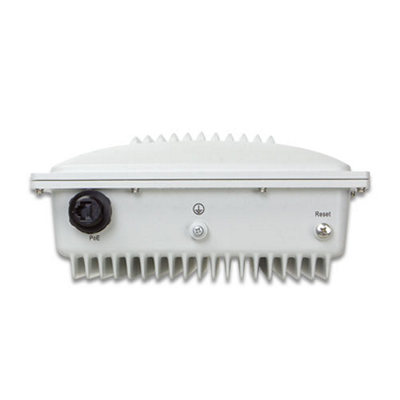

Button/Connector: Reset button, ground terminal, ground lug

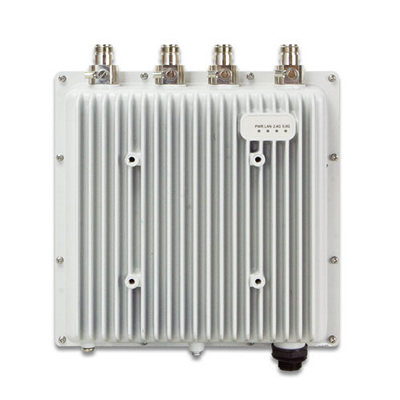

LED: PWR, LAN, 2.4G, 5G
Material: Aluminum

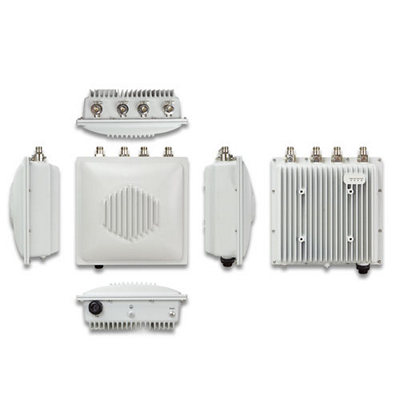

Dimensions (W x D x H): 220 x 95 x 220mm
Weight: 2.34kg
Power Requirements: 48-56V DC IN, IEEE 802.3at PoE+
Power Consumption (max.): < 24W (high-loading and heater)
< 7W (power saving mode)
Mounting Type: Mast, wall mount

Wireless Interface Specifications

Wireless Standard: IEEE 802.11a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
Antenna Structure: 802.11n: 2T2R MIMO at each frequency band
Data Rate: IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
IEEE 802.11n (20MHz): up to 150Mbps
IEEE 802.11n (40MHz): up to 300Mbp at each frequency band
Media Access Control: CSMA/CA
Modulation Type: 802.11a/g/n: OFDM (BPSK/QPSK/16QAM/64QAM)
802.11b: DSSS (DBPSK/DQPSK/CCK)
Band Mode: 2.4G and 5G concurrent mode
Frequency Range: 2.4GHz: 2.400 ~ 2.484GHz
5GHz: 5.150 ~ 5.850GHz
Operating Channel: ■ 2.4GHz
America -- FCC: 1~11
Europe -- ETSI: 1~13

■ 5GHz
America -- FCC:
36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165 (total 24 channels)

Europe -- ETSI:
36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140 (total 16 channels)

※ 5GHz channel list may be vary in different countries and
restricted to abide by regional regulatory compliance.
Channel Width: 20MHz/40MHz
Max. RF Power: 27dBm for all rate levels and modulation modes
Output Power Control: 1 ~ 100%

Software Features

Wireless Mode: ■ AP
■ WDS PTP
■ WDS PTMP
Wireless Encryption: ■ WEP (64-/128-bit) encryption security
■ WPA/WPA2 (TKIP/AES)
■ WPA-PSK/WPA2-PSK (TKIP/AES)
■ 802.1x authentication
Wireless Advanced: Enable/Disable SSID broadcast
Max. associated station number restriction
Multiple SSIDs: up to 16 at 2.4GHz and 16 at 5GHz
Supports multiple VLANs mapping to multiple SSIDs
Supports fast roaming across APs
Provides wireless statistics
Max. Wired Client: Unlimited
Max. Wireless Client: Theoretical value: 127 at each band
Recommended value: 50 at each band
Max. WDS Peers: Up to 16 at 2.4GHz and 16 at 5GHz
QoS: Supports multicast rate adaptation mechanism to guarantee the wireless bandwidth and service quality
LAN: Static IP, DHCP
IPv4 and IPv6 dual-stack management network
Supports 802.1Q tagged VLAN
System Management: Web-based (HTTP) and Telnet command line interface
Supports NTP synchronization
Easy firmware upgrade via HTTP/TFTP
Easy system backup/restore via HTTP/TFTP
Easily locate online clients’ information through the Wireless Location Management
Supports Dual-OS auto-backup mechanism
Supports Auto Power Saving Mode mechanism
Supports PLANET Smart Discovery Utility

Standards Conformance

Standard Compliance: IEEE 802.11n (2T2R, dual-N band up to 600Mbps)
IEEE 802.11a
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
Other Protocols and Standards: CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP

Environment & Certification

Temperature: Operating: -40 ~ 70 degrees C
Storage: -40 ~ 75 degrees C
Humidity: Operating: 10 ~ 95% (non-condensing)
Storage: 5 ~ 95% (non-condensing)
IP Level: IP66
ESD Protection: ±15kV air-gap discharge
±8kV contact discharge
Surge Protection: ±6kV line to ground
±2kV line to line
MTBF: 1553658 hrs at 25 degrees C
335788 hrs at 60 degrees C
EMC Emissions Class: B
Regulatory Compliance: CE, FCC, RoHS
