IKVM-210-16M Planet KVM Switch

 Control All Your PCs via IP-based KVM

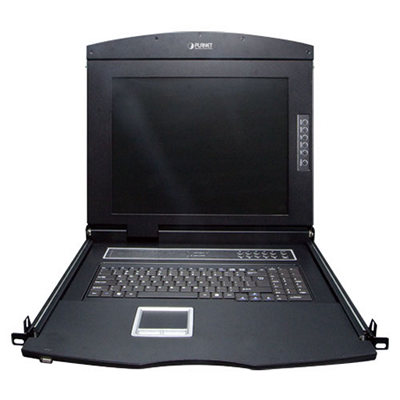

PLANET IKVM-210-16M Combo VGA LCD IP KVM Switch comes with a rack-mountable keyboard, 17" LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the IKVM-210-16M can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers.

Specifications

Hardware

Touch Pad: 1

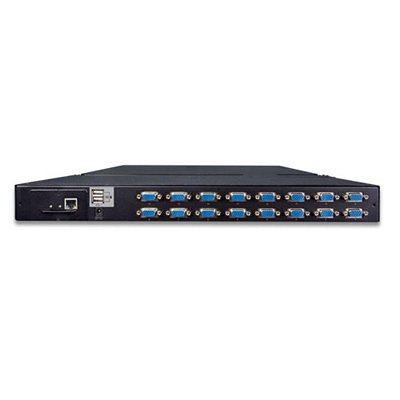

Number of Ports: 16 D-sub ports (15-pin)
Maximum: 256 by 2-tier star-type cascading
(KVM-210-16 x 16)
PC Ports:
Keyboard: PS/2 female + USB Type A female
Mouse: PS/2 female + USB Type A female
Video: 16 D-sub ports (15 female)

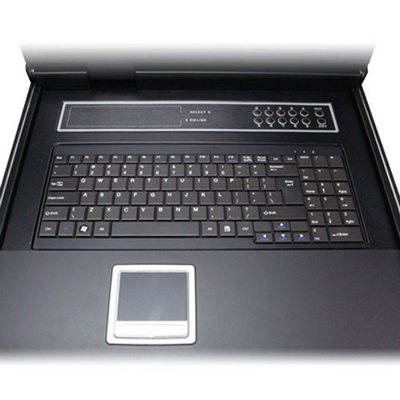

Port Select Panel:
Number Key: 10
Reset: 1
Enter: 1
LED: 16 (Red)
Segment display: 1
LCD Panel:
Monitor: 17" SXGA Color TFT-LCD
Video Resolution: 1280 x 1024
Pixel Pitch: 0.297 x 0.297 mm
Support Color: 16.2 M / 262K colors
Contrast Ratio: 1000:1
Backlight: LED
Keyboard: 100
Video Resolution: Local side: 1280 x 1024 (max)
Remote side: 1920 x 1080 (max)
Remote Console: 1 RJ45 port for 10/100/1000BASE-T
Console USB Hub Ports: 3 USB 2.0 Type A female
LCD Button: 6
Housing: Metal
Dimensions (W x D x H): 445 x 611 x 44.5 mm
Weight: 17.52kg
Power Requirement: 12V DC, 4A
Installation: 1U rack-mountable

Management

PC Selection: Port select button
Hotkeys on keyboard
OSD (on screen display)
Client Software: IPKVM Software
Supported Protocol: TCP, IP, HTTP
Scan Interval: 5~60 seconds
Security: User password and super password
DES, AES and 3DES

Environment and Certification

Operating Temperature: 0 ~ 50 degrees C
Operating Humidity: 0 ~ 90%
Regulatory: CE, FCC
